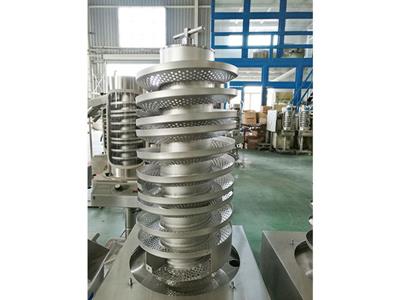

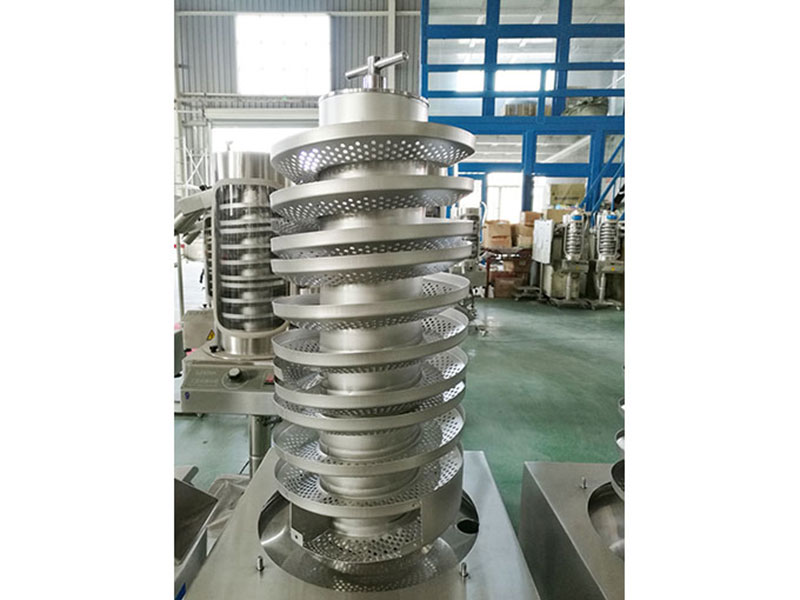

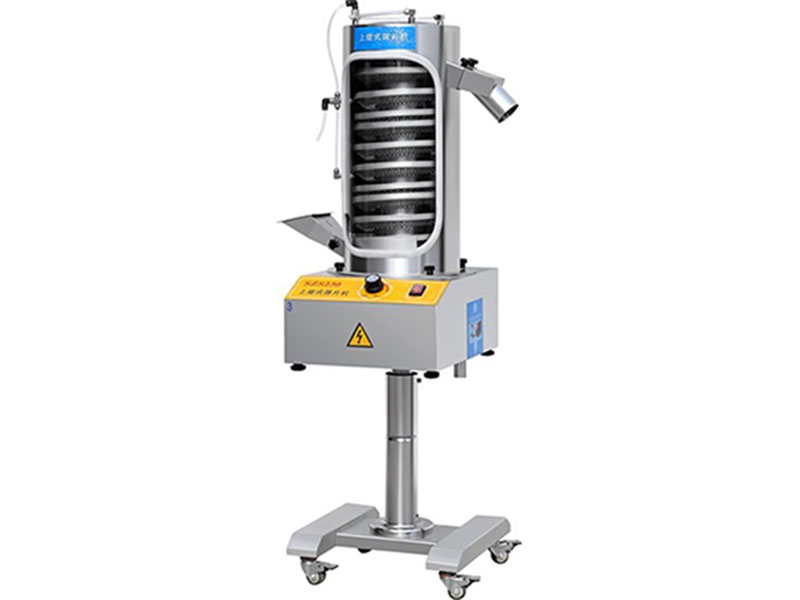

Uphill Tablet Deduster, SZS230
SZS230 uphill tablet deduster features many designs to accommodate production needs. This tablet deduster machine is able to act as both dedusting and elevating, which can be connected with tablet press and metal detector. With high working efficiency, it is suitable for pharmaceutical, nutraceutical, chemical, and related applications.
- Long dedusting path, automatic tablet polishing on all sides, and high quality dedusting without damage to the tablet itself.
- It can act as a delivering device for any shape of tablet that needs to be dedusted. Best of all, it correspond with the GMP standard.
- The machine body and cover adopts modular design, making it easy for installation and disassembly, while facilitating machine cleaning and maintenance.
- Using a new type of driving system allowing for smooth running and low noise.
- 360 degree adjustment
- Small footprint for reduced factory area required
- Suitable for dia. 3-35mm shape tablets in the large scale production
| Model | |
| Max output capacity(t/h) | 800000 (Ф6mm Tablet) |
| Dedust route (m) | 6 |
| Max lift height(mm) | 1220 |
| Max tablet Dia(mm) | Ф25 |
| Power supply | 1P 220/110V 50-60Hz |
| Outer dimension(mm) | 550×550×(H:1350-1500) |
| Weight(kg) | 70 |
| Compressed air | 0.1m3/min 0.05Mpa |
| Vacuum | 2.7m3/min -001Mpa |
