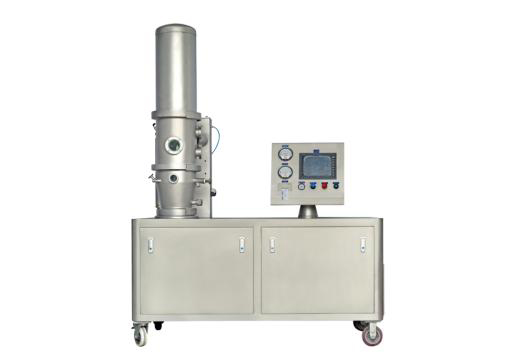

Fluid Bed Dryer

DPL Series

Fluid Bed Dryer

This fluid bed dryer is capable of accomplishing processes of drying, granulation and spray coating for powders, granules and pellets.

Request a Quote
Technical Specifications
Item DPL-ⅡA DPL3/5
Material bowl capacity Top spray (L) 9 18.5
Bottom spray (L) 5 10
Side spray (L) 7.5 9
Output Top spray (Kg/batch) 0.5-3 1.5-5
Bottom spray ( Kg/batch ) 0.25-2 0.5-3
Side spray (Kg/batch) 0.5-2 1-2.5
Compressed air Pressure (Mpa) 0.4-0.6 0.4-0.6
Consumption (m³/min) 0.4 0.5
Fan power (Kw) 4 5.5
Electric heating power (Kw) 4.5 12
Dimension Length (mm) 1800 2250
Width (mm) 860 1050
Height (mm) 2385 2850
Diameter (mm) 300 400
Features
  • Modular design, outfitted with top-spray, bottom-spray and side-spray systems to execute drying, granulation and coating processes;
  • Compact structure, fast disassembly for easy cleaning without dead corner, meeting the requirements of cGMP production standards;
  • Accurate temperature control with low fluctuation;
  • Two filtering chambers allow the bag shaking to be alternated between these two, thus guaranteeing the continuous fluidization process;
  • Automatic PLC control system with a graphical user interface assists technician to easily operate and all the operations will be implemented in accordance with set parameters, the process data can be logged and printed for analysis;
  • Specially designed air distribution plate provides even distribution of airflow and better fluidization performance, resulting a stable and reproducible quality of the final products;
