Multi-Directional Motion Mixer
Multi-Directional Motion Mixer Multi-Directional Motion Mixer Multi-Directional Motion Mixer Multi-Directional Motion Mixer Multi-Directional Motion Mixer Multi-Directional Motion Mixer

HD Series

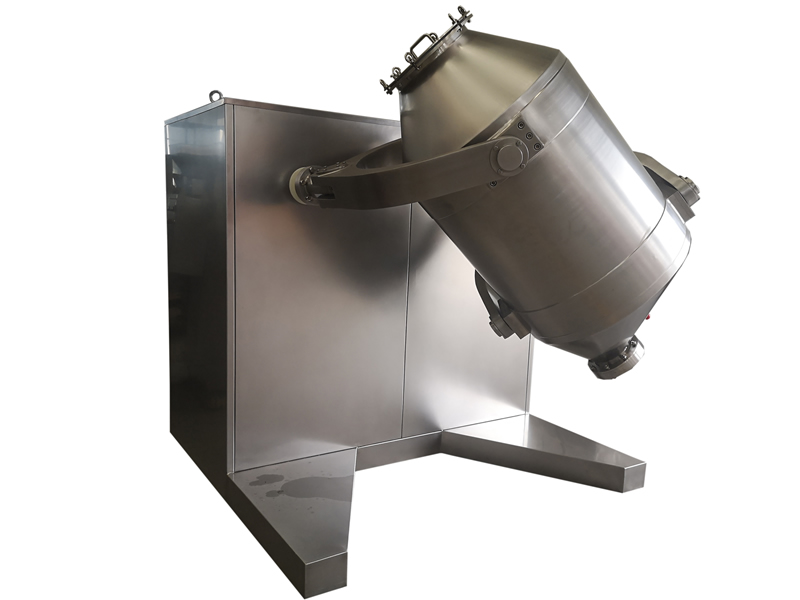

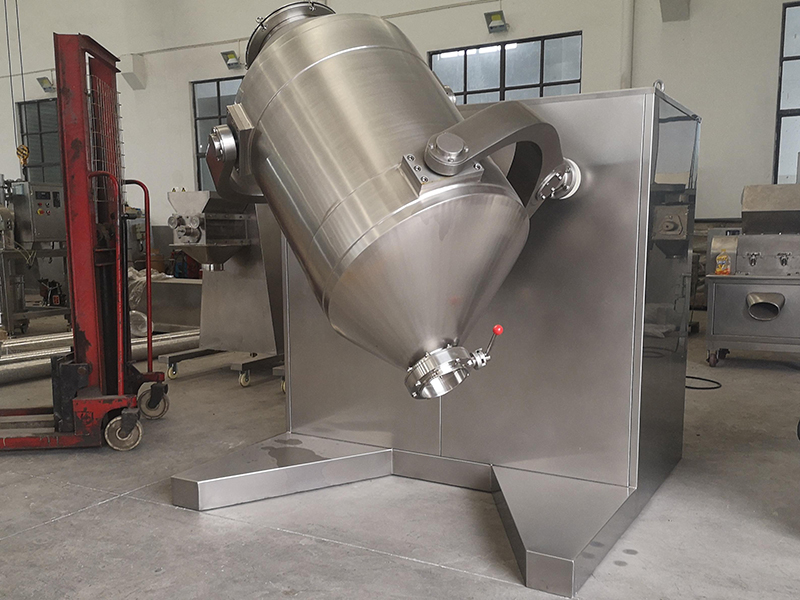

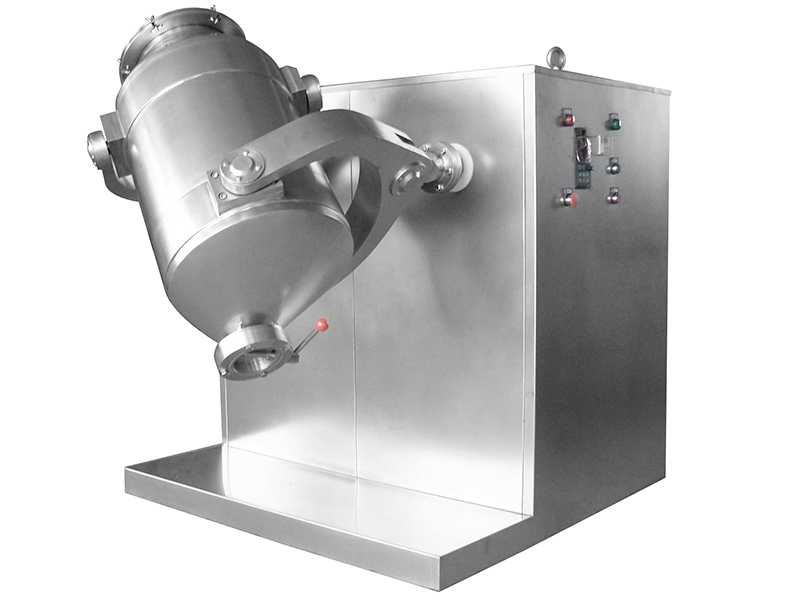

Multi-Directional Motion Mixer

The multi-directional motion mixer is widely used in the mixing of dry powder materials in pharmaceutical, chemical, food and other industries. It can also mix several kinds of materials with different specific gravity and particle size quickly and evenly, with the mixing uniformity up to 99%.
The powder mixer is designed and manufactured in strict accordance with FDA, GMP and CGMP regulations. This three-dimensional motion mixer during running is able to make multi directional operation, such as level movement, rotation, turning, rocking and other complex movements, which generates strong alternating pulse motion, providing excellent mixing effect. In addition, modular design makes it easy to disassemble and clean.

Request a Quote
Multi-Directional Motion Mixer Introduction All Videos
Multi-Directional Motion Mixer
Technical Specifications
Model HD-10 HD-25 HD-50 HD-100 HD-200 HD-400 HD-600 HD-800 HD-1000 HD-1200 HD-1500
Barrel Volume(L) 10 25 50 100 200 400 600 800 1000 1200 1500
Max Loading Volume(L) 7 17 35 70 140 280 420 560 700 840 1050
Spindle Speed(r/min) 0-20 0-15 0-15 0-15 0-15 0-12 0-11 0-10 0-10 0-10 0-10
Motor Power(kw) 0.55 0.75 1.5 2.2 3 4 5.5 7.5 7.5 11 15
Overall Dimension(L×W×H)mm 640*620*550 900*900*75 970*950*120 1200*1600*1500 1400*1800*1600 1700*2100*1850 2100*2400*2250 2200*2500*2300 2400*2800*2550 2500*3100*2600 2800*3600*3200
Weight(kg) 120 150 300 500 800 1200 1200 2000 2500 2800 3000
Features
  • Multi directional operations speeds up the flowing and diffusing actions of the materials in the mixing process, greatly avoiding gravity segregation or accumulation phenomenon caused by centrifugal action. This results in outstanding mixing effect with favorable mixing efficiency.
  • The powder mixer adopts integrated inverter and reducer for speed control.
  • The powder mixer features optional touch screen, frequency speed control and individual remote control.
  • The mixing tank is a polished stainless-steel barrel type with no dead corners.
