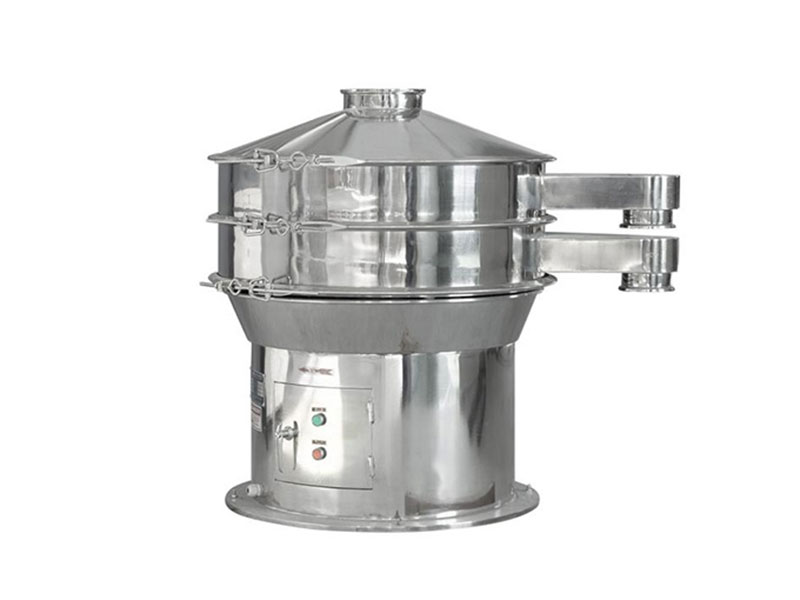

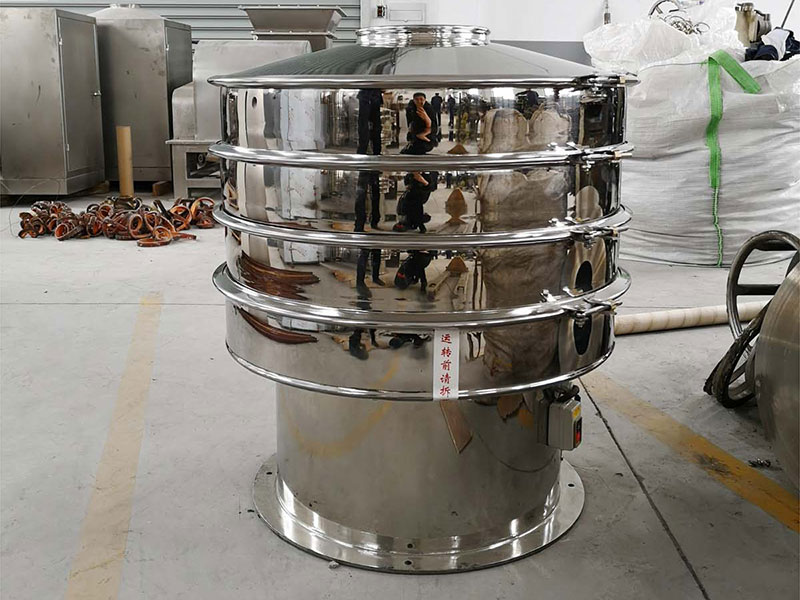

Vibratory Screener & Vibrating Sieve
Vibratory Screener & Vibrating Sieve Vibratory Screener & Vibrating Sieve Vibratory Screener & Vibrating Sieve Vibratory Screener & Vibrating Sieve

ZS Series

Vibratory Screener & Vibrating Sieve

The high efficiency screening machine is in-house developed based on the guidance of foreign experience, which overcomes insufficient capacity and problems in sieving adhesive materials. The contact area between materials and sieve frame are made with stainless steel, making it applied for continuous screening of powder and granular materials within the pharmaceutical, chemical, foodstuff, and related industries.

How it Works

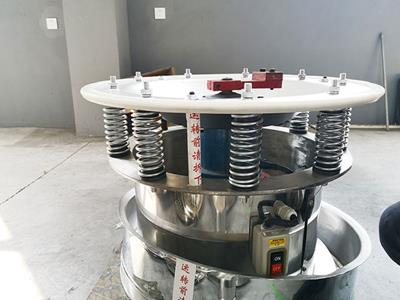

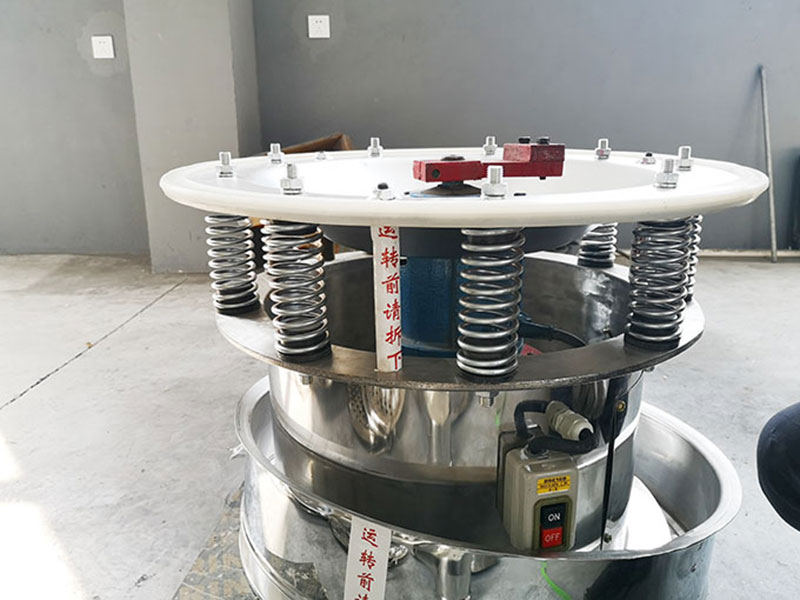

The screening machine is a vibrating system featuring a vertical vibrating motor unit. There are eccentric excitation blocks up and down on the two ends of principal axis. The blocks will be fixed on the motor axis. The weight of eccentric excitation blocks is adjustable depending on different materials, making the screnner adapted to sieving all types of materials. The material vibration is driven by both horizontal centrifugal force and vertical force, bringing better vibrating results.

Request a Quote
Technical Specifications
Model ZS-600 ZS-800 ZS-1000 ZS-1200 ZS-1500
Capacity(kg/h) 80-300 150-2000 200-2900 300-4500 500-5000
Number Of Mesh(Mesh) 12-200 12-200 12-200 12-200 12-200
Power(kw) 0.55 0.75 1.5 2.2 3
Vibration Frequency(time/min) 1500 1500 1500 1500 1500
Overall Dimension(L×W×H)(mm) 680*600*1100 1100*950*1150 1330*1100*1280 1380*1500*1320 1800*1800*1320
Weight(kg) 280 320 420 600 780
