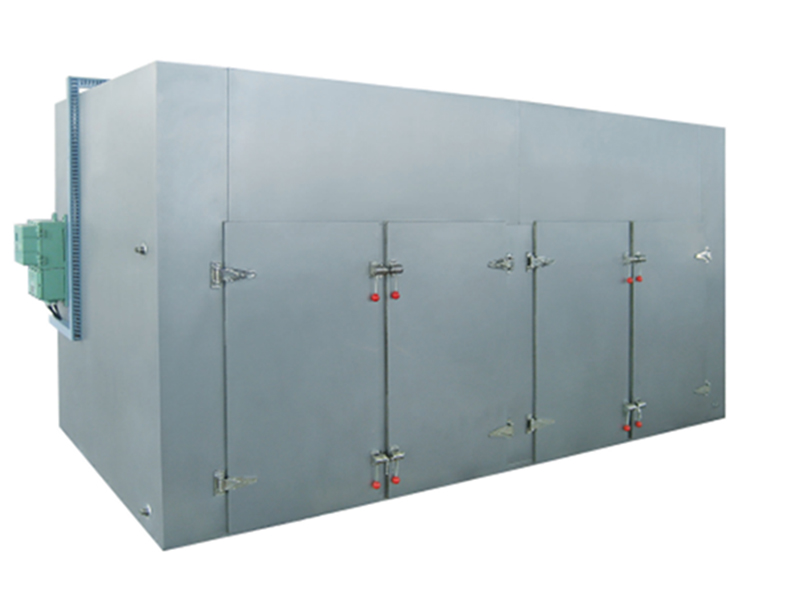

Hot Air Circulation Oven
Hot Air Circulation Oven Hot Air Circulation Oven Hot Air Circulation Oven

RXH Series

Hot Air Circulation Pharmaceutical Oven

The pharmaceutical oven is widely used for heating, drying, and sterilizing powders, granules, or herbs in R&D, mass production, quality control, etc.

Features

Most of the hot air is circulated in the oven, bringing high thermal efficiency and energy saving. The hot air circulation pharmaceutical oven is equipped with adjustable air supply system to evenly dry the materials by forced-air convection. The whole machine features stable operation, low noise, self-control temperature, easy maintenance, and wide applications.

Request a Quote
Technical Specifications
Model RXH-B-0 RXH-B-I RXH-B-II RXH-B-III RXH-B-IV
Dry Amount Each(kg) 60 120 240 360 480
Matched Power(kw) 0.45 0.45 0.9 1.35 1.8
Steam Expend(kg/h) 6 20 45 70 90
Heat Dispelling Area(m²) 5 20 40 80 100
Air Flow(m³/h) 3450 3450 6900 10350 13800
Diff In Up Down Temp℃ ±2 ±2 ±2 ±2 ±2
Collo-cate Tray 24 48 96 144 192
Overall Dimensions(L×W×H)(mm) 1370*1200*2200 2300*1200*2200 2300*2210*2200 3300*2210*2200 4460*2210*2200
Weight(kg) 800 1500 1800 2200 2800
Collo-cate Pushcart 1 2 4 6 8
