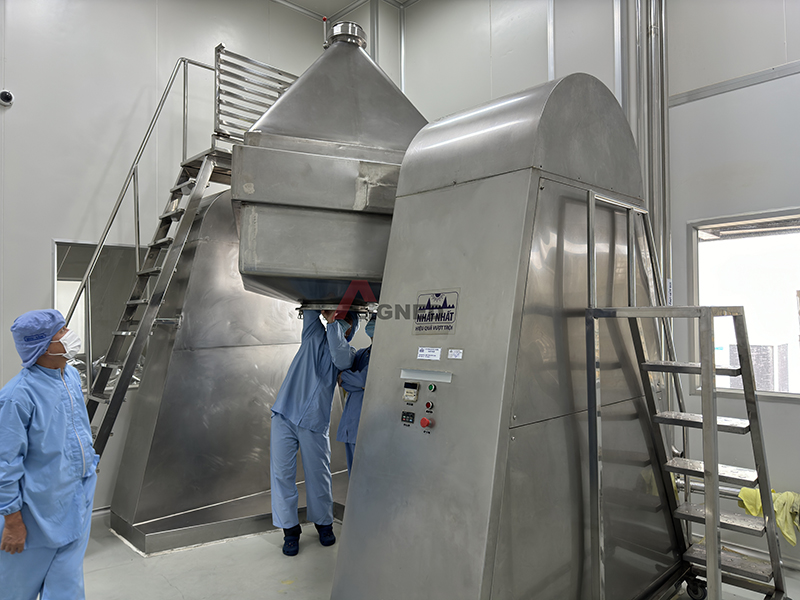

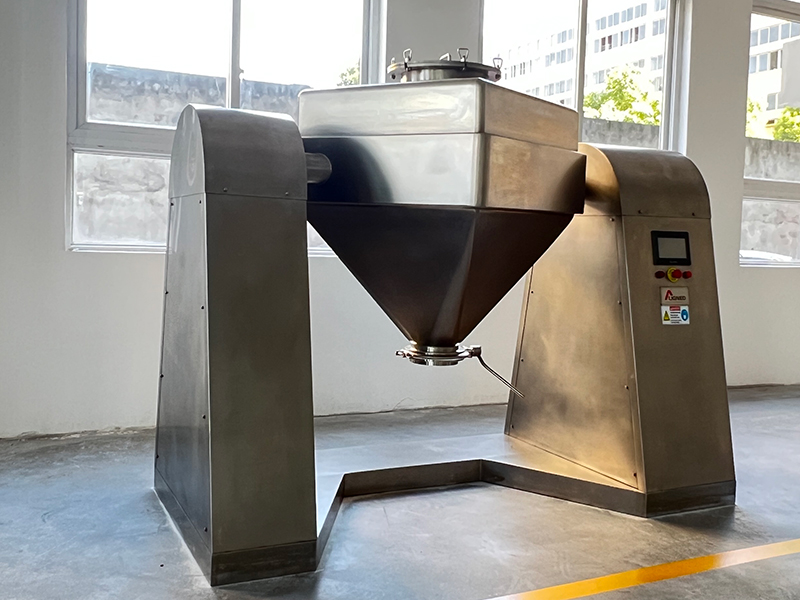

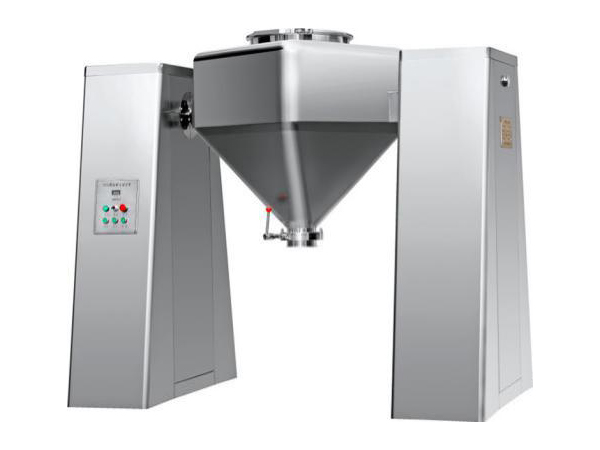

Bin Blender, HGD Series

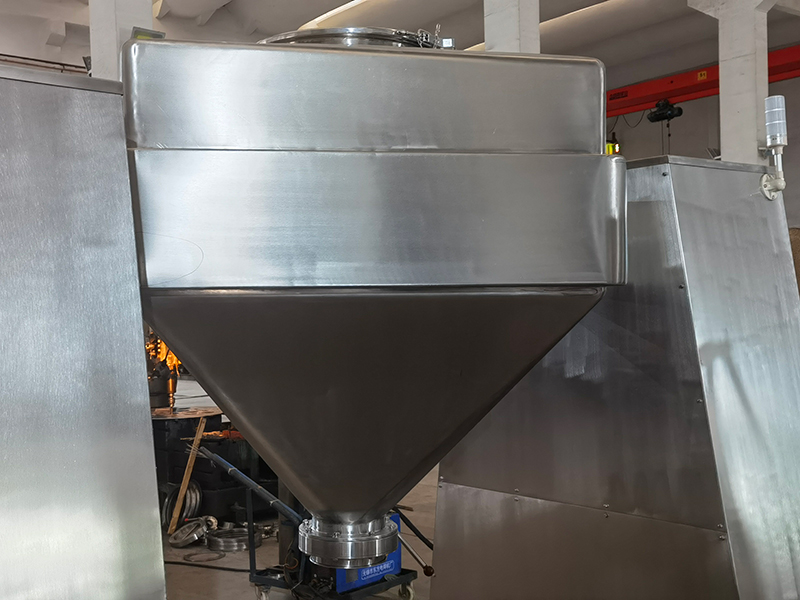

The bin blender is successfully engineered and manufactured on the basis of world’s advanced technologies and coupled with our in-depth knowledge of the foreign and domestic markets. This blending machine has no dead corner and exposed bolts, and is characterized by reasonable structure, stable performance and easy operation. The discharge butterfly valve is equipped to avoid incorrect operation, ensuring the safety of production. The rotary mixing hopper is aligned at an angle of 30 degrees to the blending axis, it enables the materials to be mixed in the hopper with rotary turning and simultaneously moved tangentially along the hopper wall to provide the best blending results and optimize the production process which is fully GMP compliant in pharmaceutical application.
| Model | Loading capacity (L) | Rotation speed (rpm) | Total power (Kw) | Dimension (L*W*H) (mm) | Weight (T) |
| 160 | 3-20 | 1.1 | 1700*1000*1580 | 0.5 | |
| 320 | 3-20 | 1.5 | 2000*1200*1860 | 0.7 | |
| 480 | 3-20 | 2.2 | 2280*1300*2000 | 0.9 | |
| 640 | 3-20 | 2.2 | 2380*1300*2080 | 1 | |
| 800 | 3-20 | 3 | 1600*1400*2200 | 1.2 | |
| 960 | 3-15 | 4 | 2900*1400*2300 | 1.4 | |
| 1200 | 3-15 | 4 | 3000*1400*2300 | 1.6 | |
| 1600 | 3-12 | 5.5 | 3150*1500*2470 | 2 | |
| 2000 | 3-12 | 5.5 | 3300*1500*2600 | 2.5 | |
| 2400 | 3-12 | 7.5 | 3600*1700*2780 | 2.8 | |
| 3200 | 3-12 | 7.5 | 3800*1800*3250 | 3.2 | |
| 4000 | 3-12 | 11 | 4300*2000*3400 | 3.8 | |
| 4800 | 3-8 | 11 | 4400*2000*3600 | 4.5 | |
| 6400 | 3-8 | 15 | 4600*2200*3700 | 5.2 | |
| 8000 | 3-8 | 15 | 4860*2200*3950 | 6.5 |
