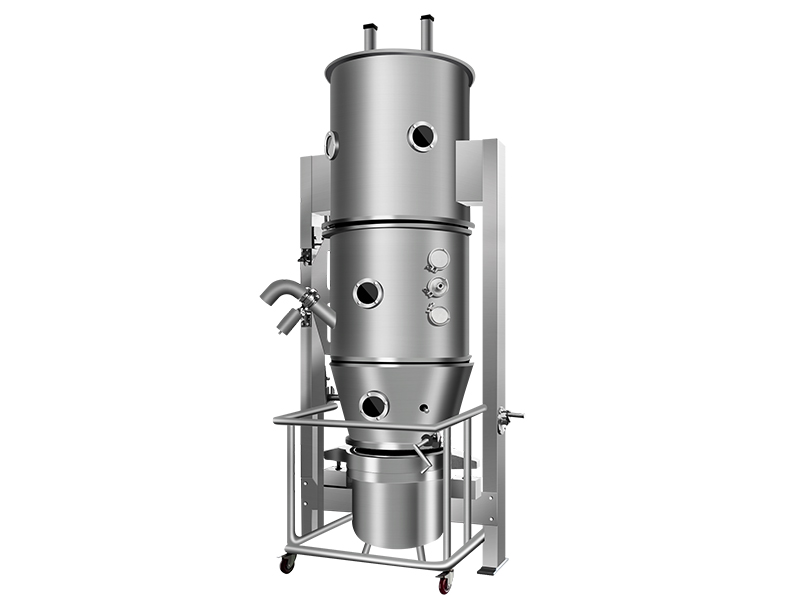

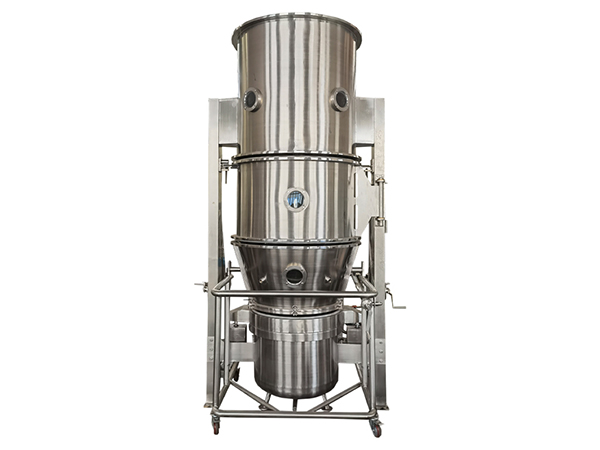

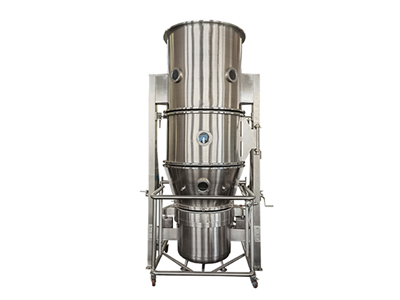

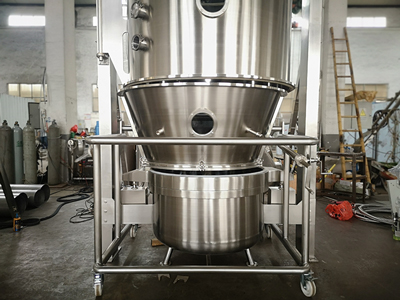

Fluid Bed Dryer
Fluid Bed Dryer Fluid Bed Dryer Fluid Bed Dryer Fluid Bed Dryer Fluid Bed Dryer Fluid Bed Dryer

FL Series

Fluid Bed Dryer

FL series fluid bed dryer is an ideal for drying water-containing solids, it is widely used in pharmaceutical, chemical, foodstuff and health care industries.

Request a Quote

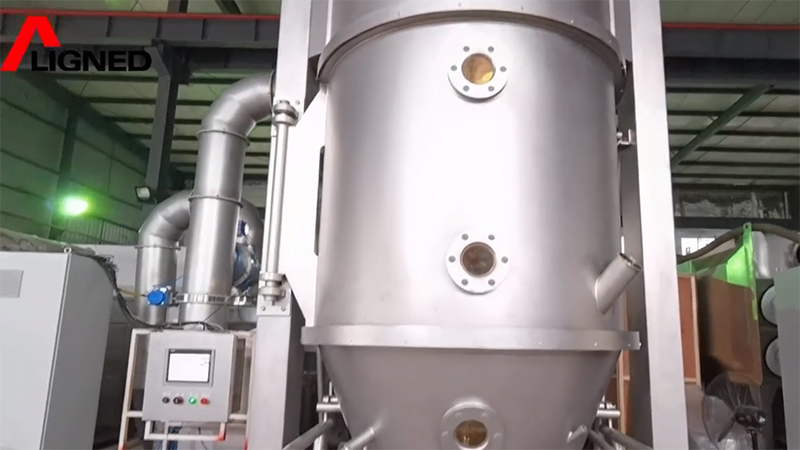

Fluid Bed Dryer Introduction All Videos
Fluid Bed Dryer
Technical Specifications
Model FL-15 FL-30 FL-60 FL-120 FL-200 FL-300 FL-500
Material container Capacity L 45 100 220 420 670 1000 1500
Diameter mm 550 700 1000 1200 1400 1600 1800
Output Kg/time 10-15 15-30 30-60 60-120 100-200 150-300 250-500
Steam Pressure MPa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Consumption Kg/hour 42 70 141 211 282 366 451
Compressed air Pressure MPa 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Consumption m3/min 0.6 0.6 0.9 0.9 0.9 1.1 1.1
Fan power Kw 7.5 11 15 18.5 30 45 55
Electric heating power Kw 30 36 45 54 63 120 180
Dimension (L×W×H) m 1.25X0.75X2.1 1.6X0.9X2.5 1.85X1.25X3 2.2X1.65X3.5 2.34X1.7X3.8 2.8X1.9X4.2 3X2.25X4.6
Features
  • Enclosed design of operating system prevents cross contamination;
  • Accurate temperature control with low fluctuation;
  • Two filtering chambers allow the bag shaking to be alternated between these two, thus guaranteeing the continuous fluidization process;
  • German advanced polishing technique provides better appearance of the machine;
  • User interface is designed with animations for visualization, easy to operate;
  • Key connection parts are imported from Germany, ensuring high safety and durability;
  • Simple structure, fast disassembly for easy cleaning without dead corner, meeting the requirements of cGMP production standards;
  • Specially designed air distribution structure provides even distribution of airflow and better production efficiency, resulting a stable and reproducible quality of the final products;

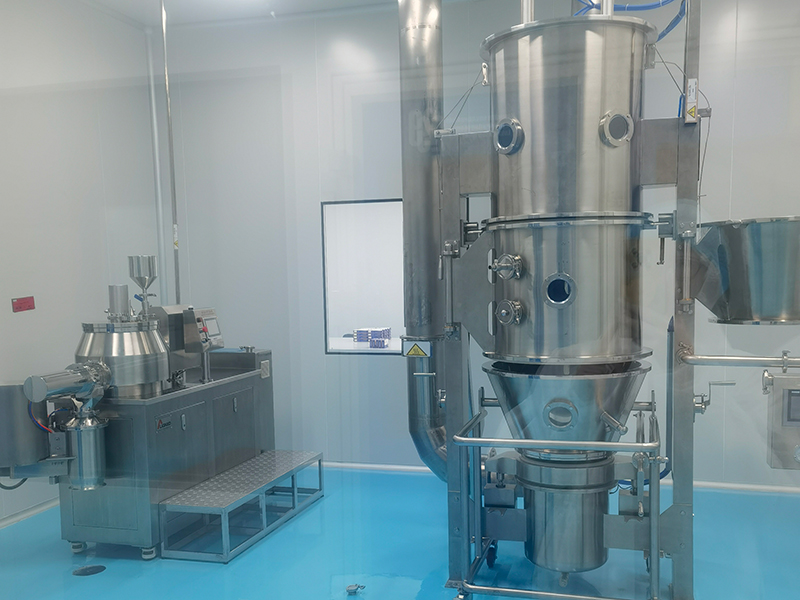

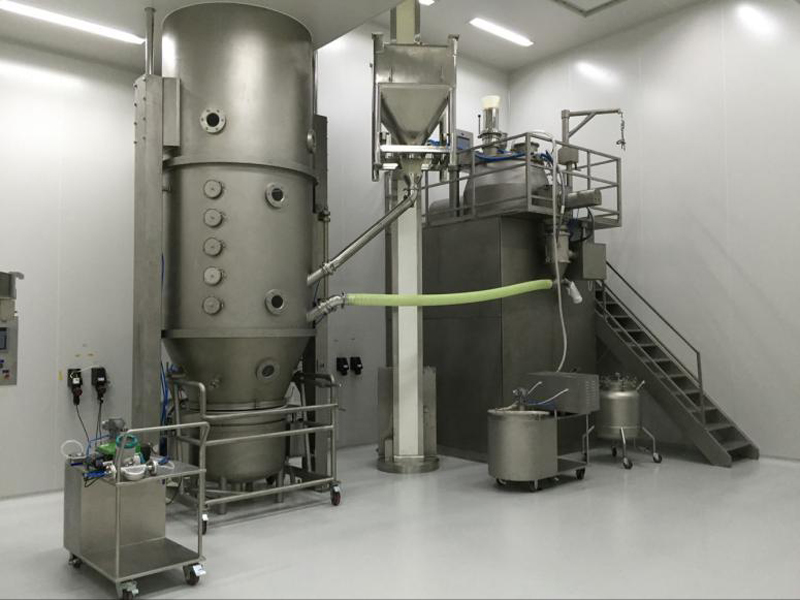

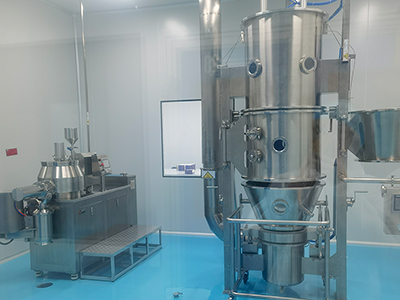

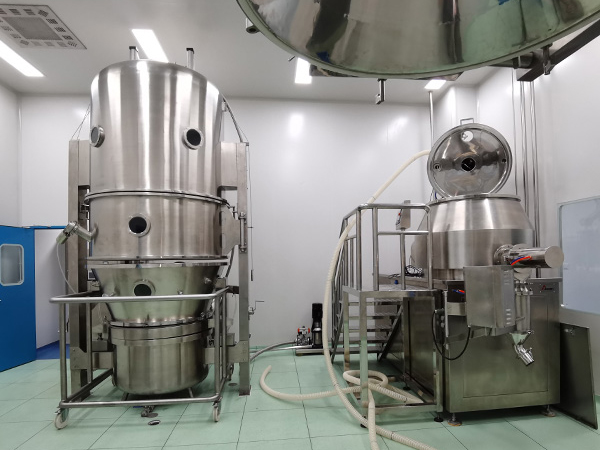

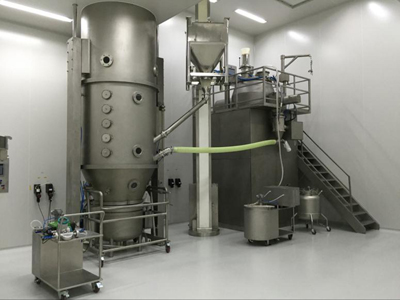

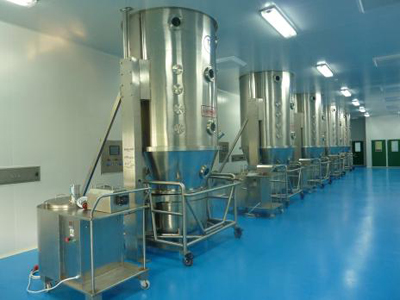

User workshop
