Automatic Capsule Filling Machine
Automatic Capsule Filling Machine Automatic Capsule Filling Machine Automatic Capsule Filling Machine Automatic Capsule Filling Machine Automatic Capsule Filling Machine Automatic Capsule Filling Machine
Request a Quote

NJP Series

Automatic Capsule Filling Machine

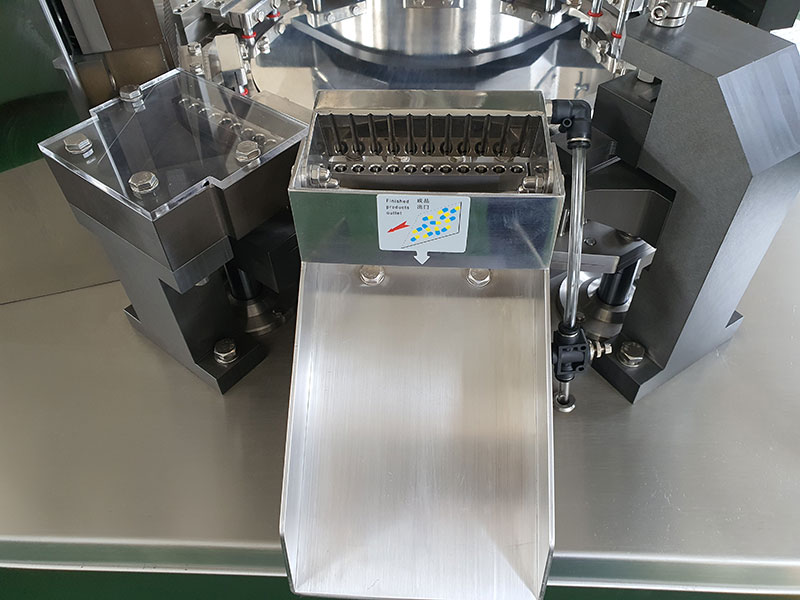

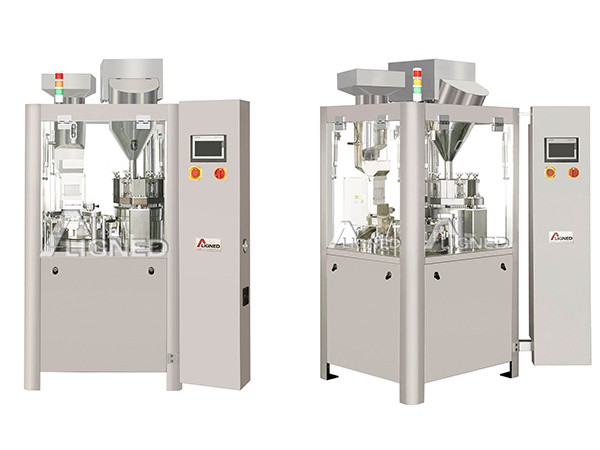

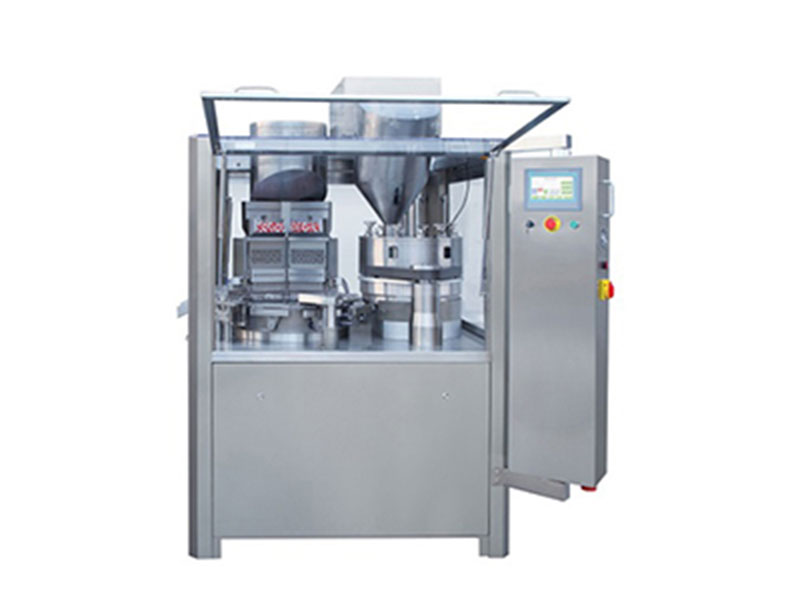

NJP series automatic capsule filling machine features innovatively intermittent rotary operation. Designed with a dosing disk, the capsule filler automates all processes including separation, filling, defective capsule rejection, capsule locking, and finished capsule ejection. Featuring a fully enclosed index table, the capsule machine is ideal pharmaceutical equipment for manufacturing hard capsules in the pharmaceutical and food industry.

  • Automatic Capsule Filling Machine
  • Automatic Capsule Filling Machine
  • Automatic Capsule Filling Machine
Automatic Capsule Filling Machine Introduction All Videos
Automatic Capsule Filling Machine
Technical Specifications
Model NJP-200 NJP-400 NJP-800 NJP-1200 NJP-2300 NJP-3500
Capacity(Capsules/h) 12000 24000 48000 72000 138000 210000
Machine weight(kg) 700 800 900 1100 1500 2200
Overall dimension(mm) 610*680*1800 760*780*1800 840*820*1900 860*940*1900 1010*1080*2000 1170*1560*2000
Power supply 380/220V 50Hz 380/220V 50Hz 380/220V 50Hz 380/220V 50Hz 380/220V 50Hz 380/220V 50Hz
Total power(KW) 3 3 4 5 8 10.5
No. of filling bores 2 3 6 9 18 25
Vacuum system 20m3/h-0.04-0.08Mpa 40m3/h-0.04-0.08Mpa 63m3/h-0.04-0.08Mpa 120m3 /h-0.04-0.08Mpa
Applicable capsule size 00, 0, 1, 2, 3, 4, 5#
Fill accuracy ±2.5%-±3.5%
Features
  • Capable of filling capsules with powder, granules or pellets;
  • Using a vacuum capsule positioning system ensures the capsules are placed and filled accurately;

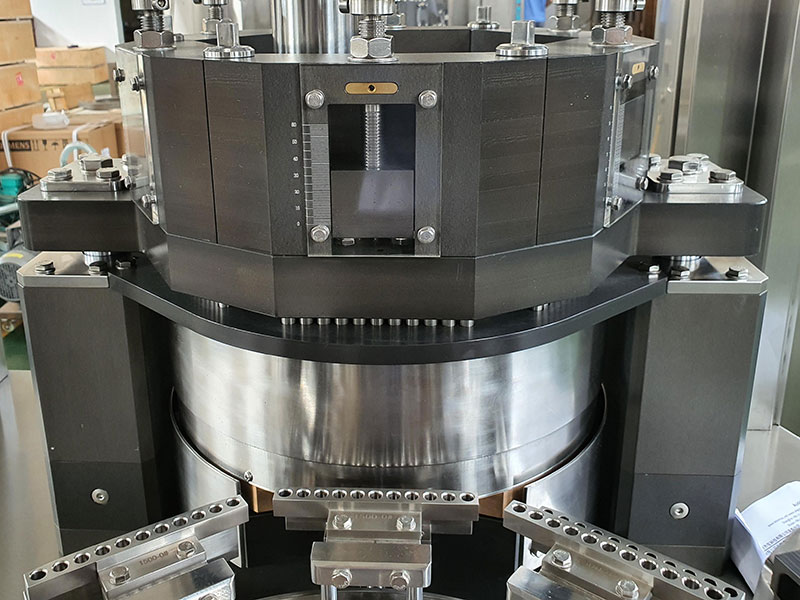

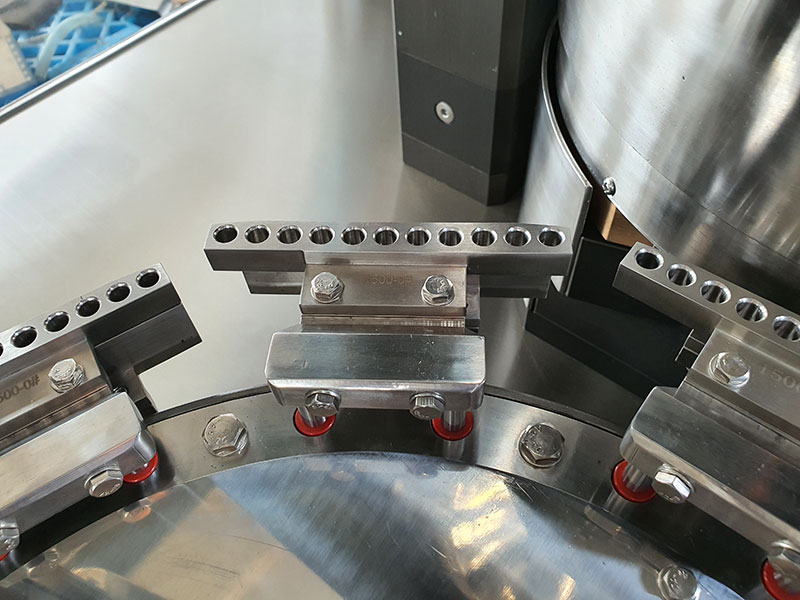

  • Fully enclosed index table with 10 stations for clean and efficient production;
  • Filling weight, speed and capsule length can be freely adjusted;

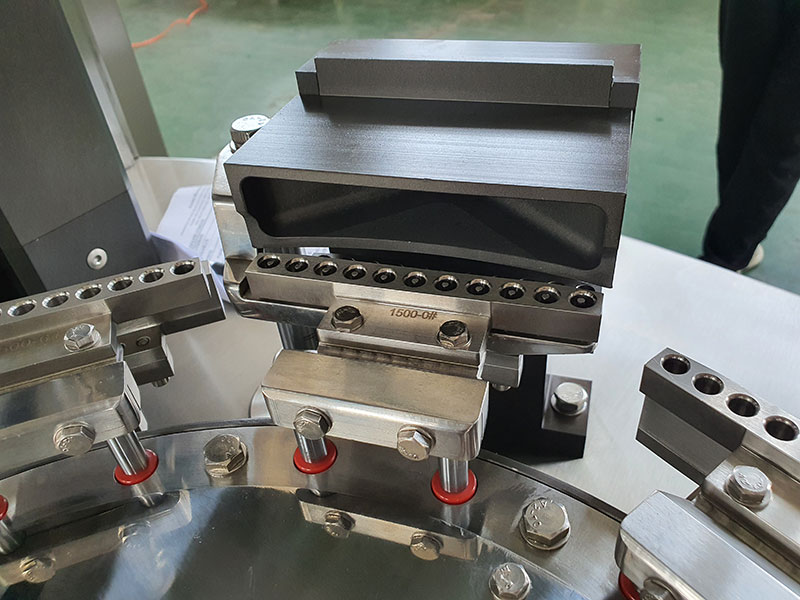

  • Modular powder slug filling mechanism is easy to disassemble for cleaning;
  • Features a superior quality transmission mechanism with high performance, significantly reducing vibration during machine running. This ensures high stability and long service life;
  • Main electrical control components are purchased from the well-known manufacturers in the world. Advanced control technology allows for precise control;
  • With a LCD touch screen, the capsule filler is easy to operate with high accuracy.
