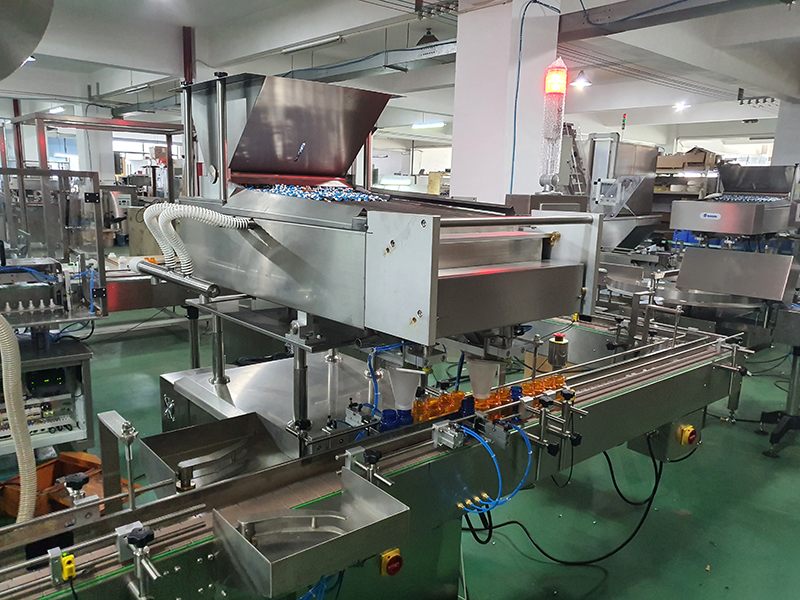

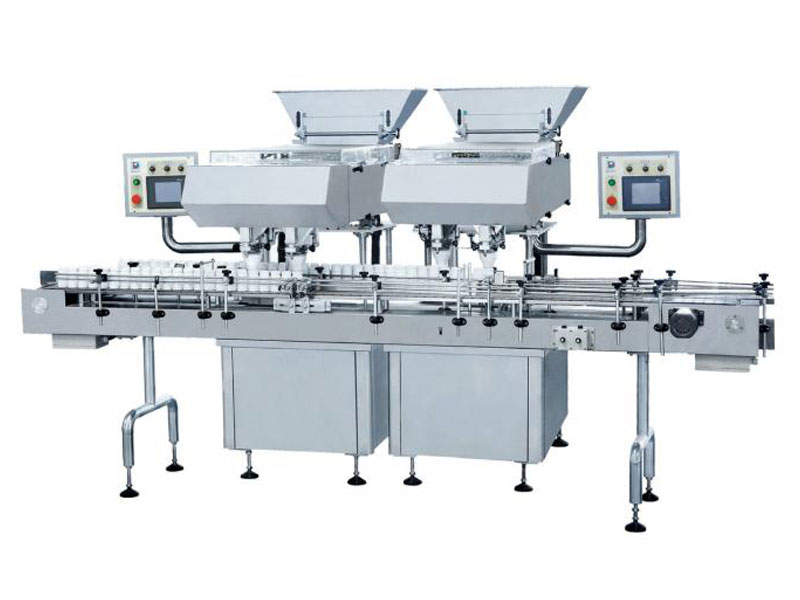

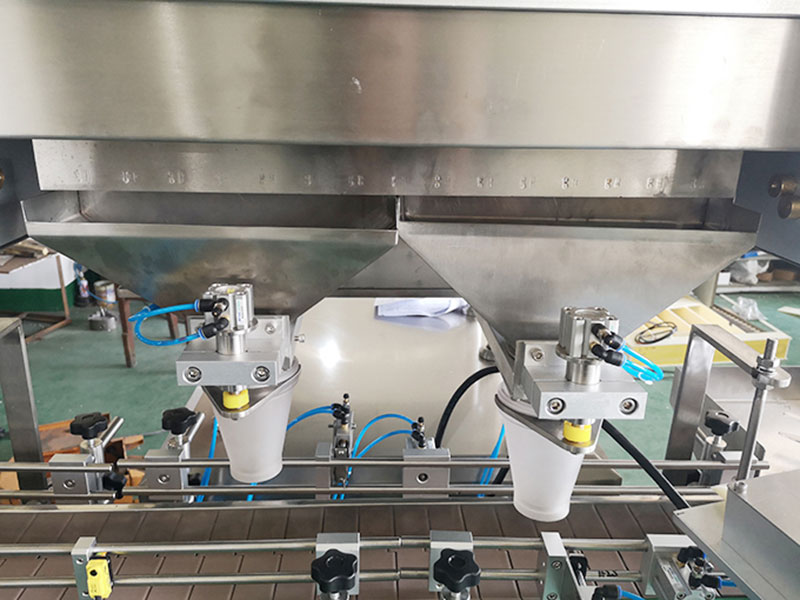

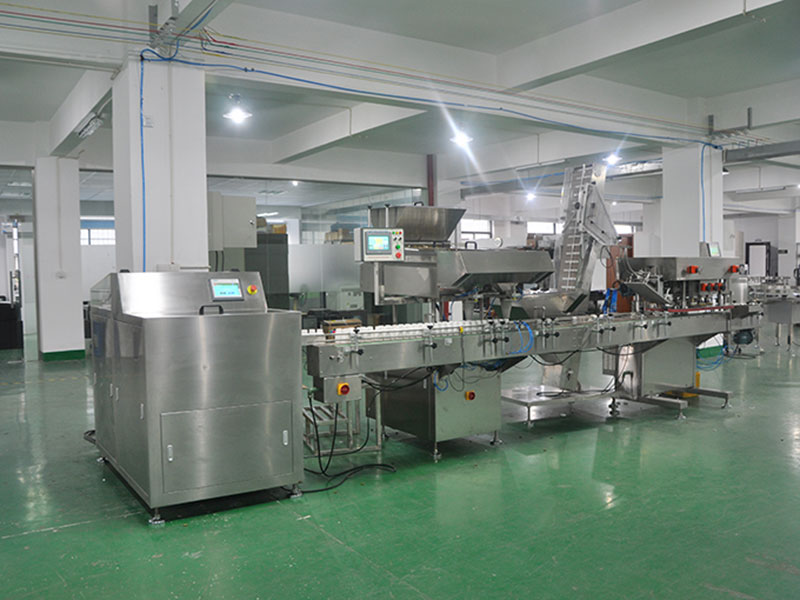

The electronic tablet counter mainly comprises of machine body, vibratory feed system, photoelectric sensor counting unit, pneumatic cylinder & solenoid valve system, control panel, conveyor belt and photoelectric sensor detecting system. The high speed counting process is completely PLC controlled, ensuring high counting accuracy.
The parts of tablet counter such as bulk hopper, material delivery board and counting channels can be easily dismantled without the use of tools for faster clean up.
The photoelectric sensor is outfitted in detecting system to sense and count the tablets, it leads to an accurate counting result. The filling height can be adjusted adapting to different heights of containers by only pressing the lifting button on control panel, offering an easy and quick operation.
Technical Specifications
| Model | SL12 | SL16 | SL24 | SL32 |
| Vibrating Channels | 12 | 16 | 24 | 32 |
| Production Capacity (Pills/Hour) | 5,0000-260,000 | 60,000-350,000 | 80,000-500,000 | 100,000-600,000 |
| Counting Range | 15-9999 pcs |
| Pill Size | Tablet: min. Ø3mm, max. Ø22mm Capsule: #00 - #5 |
| Container Diameter | Ø25- Ø75mm |
| Container Height | ≤240mm |
| Hopper Capacity | 40L | 40L*2 |
| Compressed Air Pressure | 0.4-0.6MPa |
| Air Consumption (Clean Air Source) | 150L/min | 200L/min | 250L/min | 300L/min |
| Total Power | 2.2kW | 2.5kW | 4.0kW | 4.5kW |
| Power Supply | Three-phase AC, 50-60HZ |
| Dimension (L×W×H) | 1200×1950×1800mm | 1300×1950×1800mm | 1650×1950×1800mm | 4000×2250×1850mm |
Features
- The counter equipment uses advanced infrared counting technology with 360-degree dynamic scanning, ensuring precise counting without blind spots.
- The modular design allows for tool-free disassembly of key components like the hopper, feed tray, optical counting channel, and valve plate, making cleaning and maintenance quick and efficient.

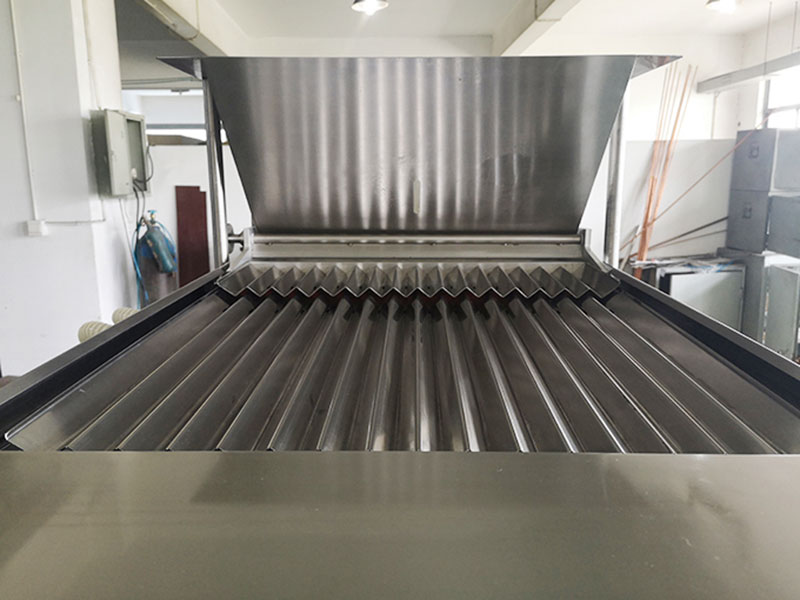

- An electromagnetic vibration feeder ensures smooth feeding and precise tablet separation with high stability and low noise, preventing stacking and maintaining counting accuracy.
- It features high automation, controlled by a high-speed PLC system with an intuitive interface. The height of the filling station is adjustable to suit various container sizes.

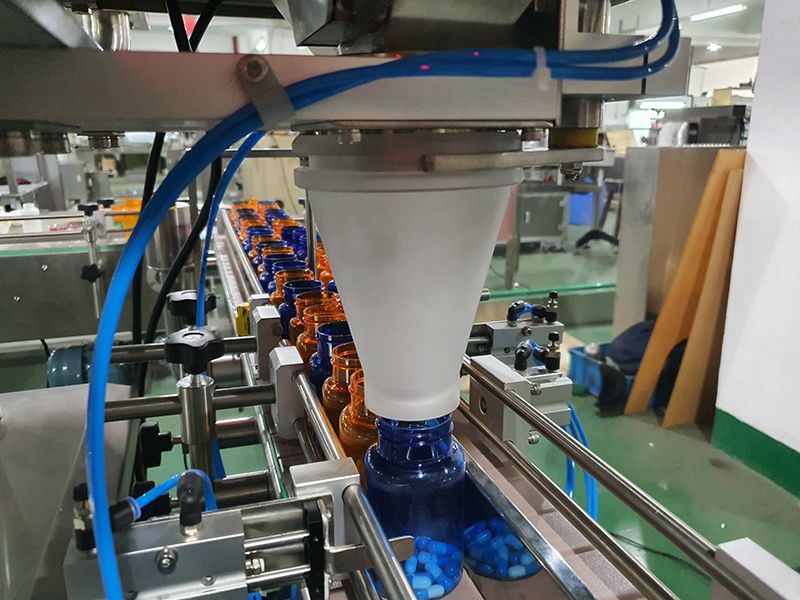

- Integrated photoelectric sensors ensure bottles are correctly positioned before filling, reducing the risk of spills and enabling safe operation.
- Quick changeover capability allows for fast adjustments to accommodate different products and container specifications, minimizing downtime and maximizing efficiency.
