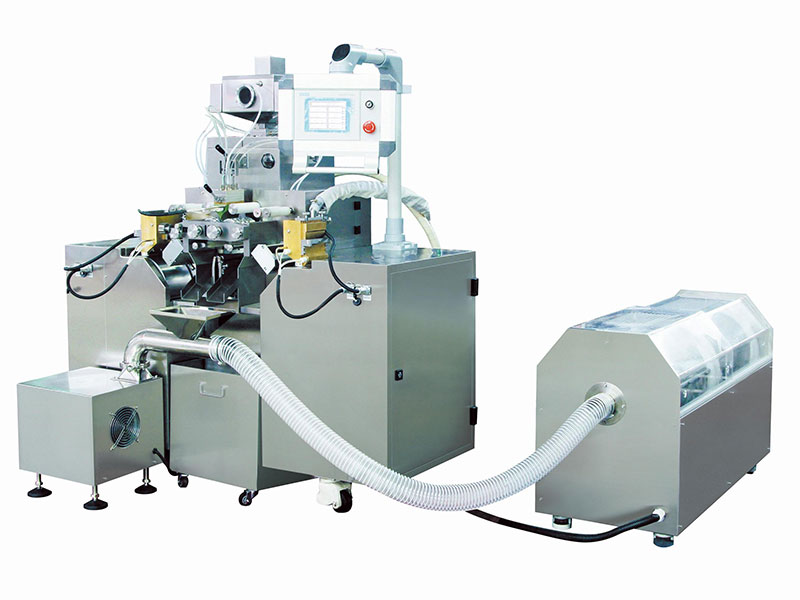

Automatic Softgel Encapsulation Machine, YWJ Series
If you want to supply quality softgel capsules, then you should have a softgel encapsulation machine with high performance. Aligned Machinery will be your right place. YWJ series automatic softgel encapsulation machine was newly developed based on the internationally latest softgel capsule technology and our extensive experience in the pharmaceutical industry, which is used for manufacturing softgel capsules in an efficient manner. This softgel machine features high working efficiency and performance, available with a range of shapes, designs and production capacities, making it ideally suitable for use in softgel factories.
| Model | ||||
| Dimensions of die rolls | Φ80x100mm | Φ113x200mm | Φ150x250mm | Φ157x100mm |
| Total # of cavities (8#OV) | 90 | 260 | 504 | 629 |
| Rotating speed of die rolls | 0-5rpm | 0-5rpm | 0-8rpm | 0-5rpm |
| Fill volume of each plunger | 0-1.5ml | 0-2ml | 0-2ml | 0-2ml |
| Plunger number | 6 | 14 | 20 | 24 |
| Filling accuracy | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% |
| Capacity | 21800 | 62400 | 205800 | 150960 |
| Total power | 5kw | 12kw | 12kw | 12kw |
| Weight | 400kg | 1300kg | 1500kg | 1500kg |
| Overall dimension | 1400x620x1350mm | 200x910x1900mm | 2200x1000x1900mm | 2100x1130x1900mm |
Founded in 2004, ALIGNED MACHINERY is a high-tech company specialized in developing, manufacturing and supplying of pharmaceutical machinery and packaging equipment. In addition to manufacturing and offering solid dosage production line including crushing machine, mixing machine, drying machine, capsule filling machine, tablet press, tablet coating machine, blister packaging machine and bottling line, we are also capable of providing complete solutions to solve your application needs.
Since the day of its foundation, ALIGNED MACHINERY has made a firm commitment to serve customers with one-stop source for pharmaceutical equipment and pharmaceutical projects. With wealthy experience of EPCM projects, we have executed a number of projects of solid dosage and liquid dosage manufacturing for various markets.
