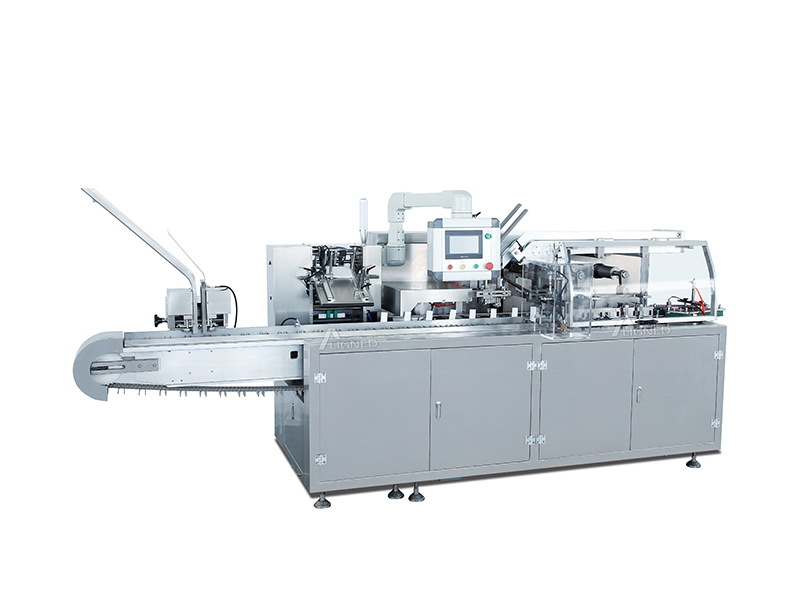

Automatic Cartoning Machine

DXH-130 series automatic cartoning machine is ideal for packaging of products like blister packs, bottles, vials, pillow packs, etc. It is capable of automatic implementing the processes of pharmaceutical products or other items feeding, package leaflets folding and feeding, carton erecting and feeding, folded leaflets insertion, batch number printing and carton flaps closing. This automatic cartoner is constructed with a stainless steel body and transparent organic glass that enables the operator to well monitor the working process while provides a safe operation, it is certified in accordance with the requirements of GMP standard. Besides, the cartoning machine has safety features of overload protection and emergency stop functions to guarantee the safety of operator. The HMI interface facilitates the cartoning operations.

Automatic Cartoning Machine Introduction All Videos

Technical Specifications

Model		DXH-130
Cartoning speed		80-120 carton/min
Carton	Weight	250-350g/m2 (depends on the size of carton)
	Size (L×W×H)	(70-180) mm × (35-85) mm × (14-50) mm
Leaflet	Weight	60-70g/m2
	Size (unfolded) (L×W)	(80-250) mm ×(90-170) mm
	Folding	Half fold, double fold, tri-fold, quarter fold
Compressed air	Pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Motor power		0.75kw
Dimension (L×W×H)		3100mm×1100mm×1550mm
Net weight		Approx.1400kg

Features

No products not suction leaflet, no leaflet not suction carton;
Product loading is suppressed in the case of product missing or imprecise positioning, the machine automatically stops when the product is improperly inserted into carton;
The machine automatically stops when there is no carton or no leaflet detected;
Easy to change products with various specifications;
Overload protection function for operator safety;
Automatic display of packing speed and counting quantity;
