Tablet Coating Machine / Tablet Coater
Tablet Coating Machine / Tablet Coater Tablet Coating Machine / Tablet Coater Tablet Coating Machine / Tablet Coater Tablet Coating Machine / Tablet Coater Tablet Coating Machine / Tablet Coater Tablet Coating Machine / Tablet Coater
Request a Quote

BG-E Series

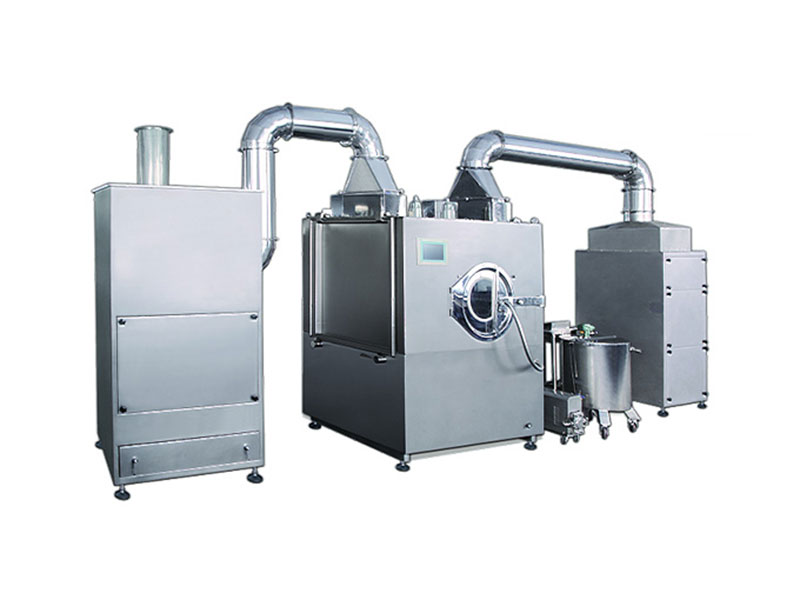

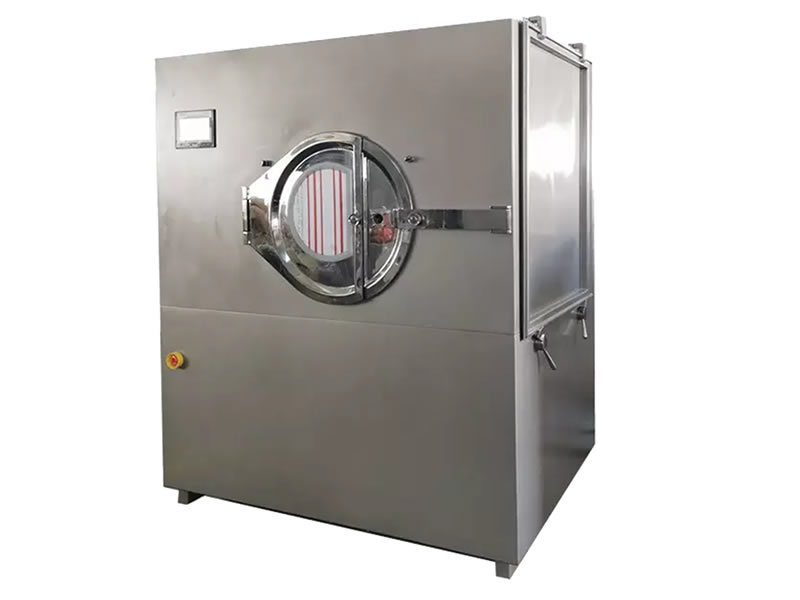

Tablet Coating Machine / Tablet Coater

The tablet coater is widely used for coating various tablets, pills, and sweets with organic film, water-soluble film and sugar film, etc. in such fields as pharmaceutical, food, and biological products, etc. This pharmaceutical processing equipment features good appearance in design, high efficiency, low energy consumption, small footprint, etc.

  • Tablet Coating Machine / Tablet Coater, BG-E Series
  • Tablet Coating Machine / Tablet Coater, BG-E Series
Tablet Coating Machine / Tablet Coater Introduction All Videos
Tablet Coating Machine / Tablet Coater
Technical Specifications
Model BG-10E BG-40E BG-80E BG-150E BG-260E BG-400E BG-600E BG-1000E
Load Capacity L 10 40 80 150 260 400 600 1000
Rotation Speed Of Coating Pan(RPM) 1-25 1-21 1-19 1-16 1-16 1-13 1-12 0-12
Power Of Main Machine(KW) 0.55 1.1 1.5 2.2 2.2 3 5.5 7.5
Diameter Of Coating Pan(mm) 500 750 930 1200 1360 1580 1580 1580
Motor Of Air Exhaust Cabinet(Kw) 0.75 2.2 3 5.5 5.5 7.5 11 22
Air Exhaust Flow(m³/h) 1285 3517 5268 7419 7419 10000 15450 20000
Motor Power Of Hot Air Cabinet(Kw) 0.37 0.75 1.1 1.5 2.2 3 5.5 7.5
Hot Air Flow(m³/h) 816 1285 1685 2356 3517 5200 7419 10000
Weight Of Main Machine(kg) 200 500 684 1020 1300 1562 2800 4000
Clean air Pressure(mpa) ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa ≥0.4Mpa
Air Consumption(m³/min) 0.3 0.4 0.4 1 1.2 1.5 2 3.5
Machine Dimension
(L×W×H)
Main Machine(mm) 900*620*1800 1000*800*1900 1210*1000*1900 1570*1260*2250 1730*1440*2470 2000*1670*2660 2000*2277*2660 2500*3100*2800

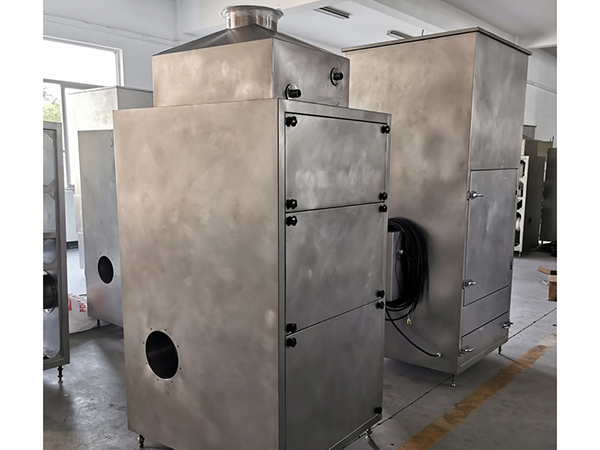

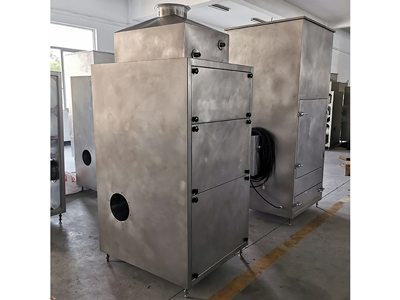

Hot Air Cabinet(mm) 800*650*1600 900*800*2050 900*800*2050 1000*900*2300 1000*900*2300 100*900*2300 1600*1100*2350 1700*1200*2600(3000 steam)
Air Exhaust Cabinet(mm) 800*650*1600 820*720*1750 900*820*2130 950*950*2245 1050*1050*2330 1050*1050**2330 1050*1000*2470 3000*1115*2400
Steam Heating Power
(KW)
9 10 14 14 18 29 40
Electric Heating Power
(KW)
12 24 30 42 48 61 79 120
Features
  • Negative pressure controlled in a convenient manner: A negative pressure detection point is added to the upper box of the coating machine. The negative pressure value can be set freely on the touch screen. Only after setting the negative pressure value, the air intake and exhaust inside the coating machine can be controlled. With intuitive touch screen, the negative pressure can be easily controlled, while automatically controlling the air intake and exhaust.
  • Automatic control of hot air supply: The airflow speed detection point is added in the hot air pipeline. The hot air supply can be displayed and operated intuitively on the touch screen, which is controlled digitally and automatically to meet precise control of air supply in an automatic manner.
  • Precise temperature control: Temperature sensors are equipped on the air inlet and outlet of the coating pan. The temperature signal of the PLC is compared with the set value (900°C). Adopting heat exchanger ensures the working temperature is always within the set value.
  • High working efficiency and reduced cost: The frequency conversion speed control greatly improves the automation degree of sugar coating. In addition, the use of wear-resistant silicone hoses is eliminated, which greatly saves the investment in wearing parts and reduces the cost. This tablet coating machine is suitable for both film coating and sugar coating, which truly realizes the dual use of one machine.
