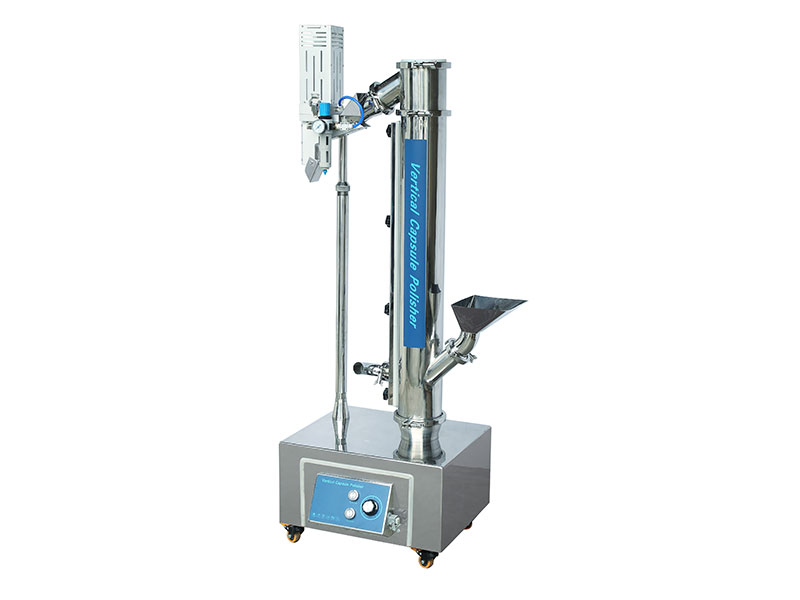

Vertical Capsule Polisher
Vertical Capsule Polisher Vertical Capsule Polisher Vertical Capsule Polisher Vertical Capsule Polisher Vertical Capsule Polisher Vertical Capsule Polisher
Request a Quote

LFP-150A

Vertical Capsule Polisher

LFP-150A vertical capsule polisher is used for efficiently removing excess dust and polishing capsule while conveying upward. This capsule polishing machine can be used together with capsule filling machine, capsule sorter and metal detector to realize polishing, conveying upward, sorting and detecting.

Features
  • Used for polishing capsule while conveying upward;
  • Feeding and discharge fort can be 360 degrees rotated to adapt to various operations;
  • Capsule sorter is used for automatically separating empty capsules and unqualified capsules;
  • Quick installation method provides installation and disassembly with ease;
  • The parts which contact with capsules are made of stainless steel;
  • Detachable brush for easy cleaning;
  • Meets high hygienic requirements of the GMP standard.
Technical Specifications
Model LFP-150B LFP-150A
Applicable capsule type 00#, 0#, 1#, 2#, 3#, 4#
Max. Capacity 300000 capsules/h 600000 capsules/h
Feeding height 730mm
Discharge height 1050mm 1100mm
Power supply 1PH 220V/110V 50Hz/60Hz 0.02KW
Compressed air 0.3 m3/min 0.3Mpa
Vacuum 3.0 m3/min -0.014Mpa
Machine dimension 740*510*1500mm
Machine weight 75kg 80kg
