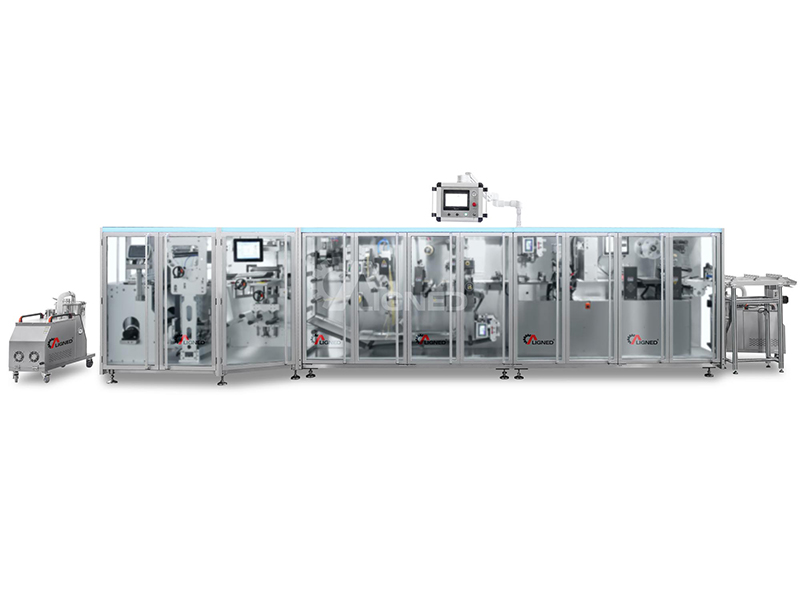

High Speed Oral Dissolving Film Packaging Machine

KFM-260L-DZ oral dissolving film packaging machine is designed to cut ODF film into individual strips, transfer them onto the packaging film, and complete lamination, before heat sealing the film-based materials, and finished pouch output. It is suitable for applications in pharmaceuticals, nutraceuticals, and food production. Designed and manufactured in accordance with pharmaceutical GMP requirements and UL safety standards, the machine supports safe, stable, and efficient operation.

With an aesthetic design and a clean, easy-to-maintain structure, the ODF packaging machine integrates variable-frequency drive technology with an automated control system that combines mechanical, electrical, optical, and pneumatic functions. Cutting, heat sealing, batch coding, and trimming can be accurately controlled through the operation panel, effectively improving production efficiency and packaging quality.

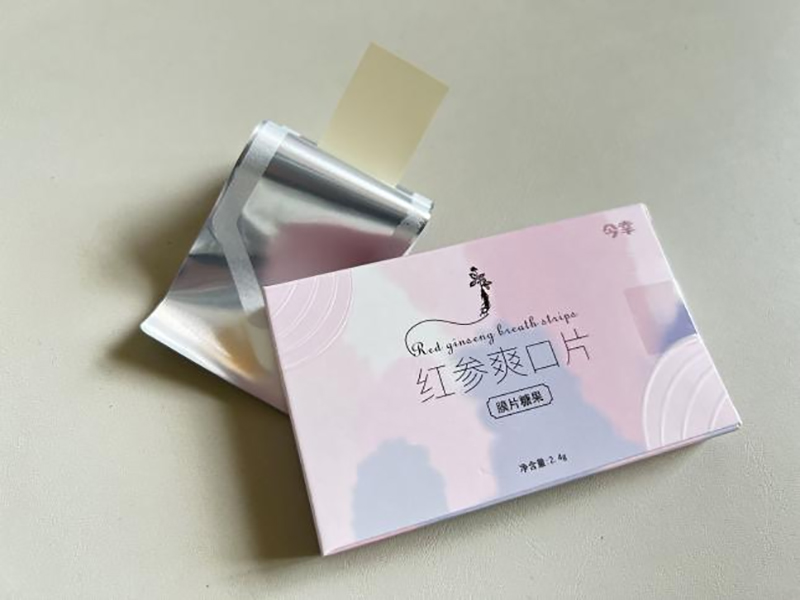

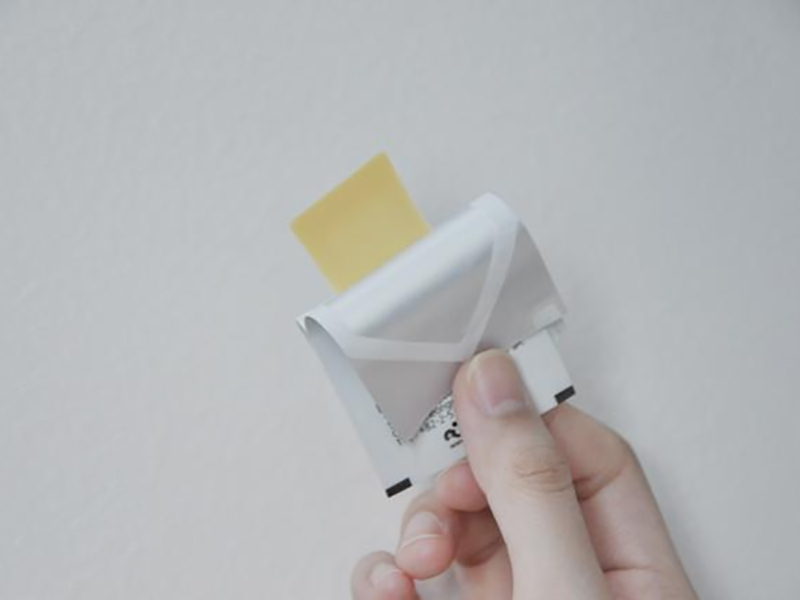

Samples

High Speed Oral Dissolving Film Packaging Machine Introduction All Videos

Technical Specifications

Model	KFM260L-DZ
Cutting speed	380-400 strips/min
Packaging film width	480–520 mm
Unwinding diameter	≤⌀300mm
Rewinding diameter	≤⌀240mm
Total installed power	18kW
Machine dimensions (L×W×H)	7840 mm×1480mm×2220 mm
Machine weight	6000kg
Power supply	380 V, 3-phase, 50 Hz

Performance & Features

Its precision servo control allows for meticulous adjustments to the heat sealing speed and temperature, ensuring the seal's consistency and reliability across all operations.

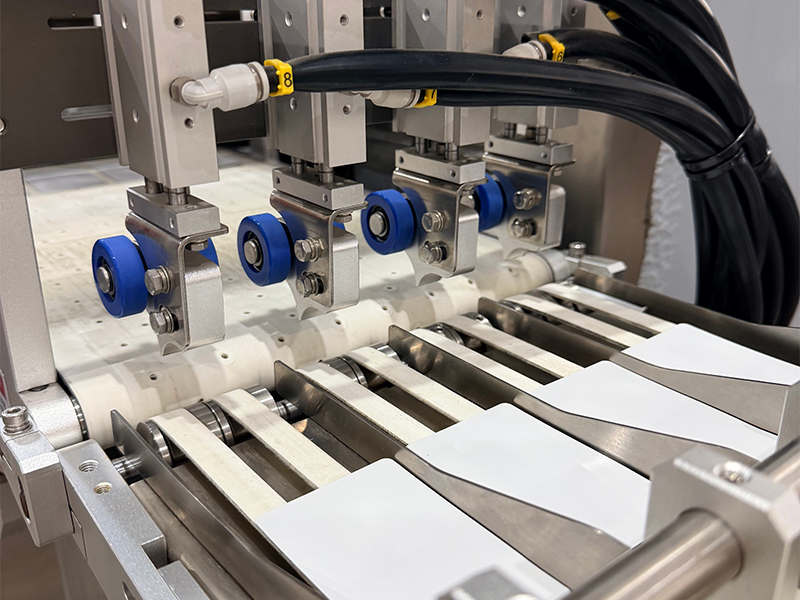

Equipped with a finished product conveyance system that optimizes the transfer process with a vacuum adsorption mechanism and a pneumatic scrap ejection device, thereby ensuring only high-quality finished products are delivered.
Its design allows for a significant boost in production efficiency, capable of producing at rates six times that of older models, thanks to the advanced reciprocating heat sealing that speeds up the process.
Accurate layer alignment during the packaging of oral dissolving films is crucial, and the machine guarantees that the printed top and bottom layers are perfectly synchronized, ensuring high-quality packaging every time.
The automatic alignment station improves the alignment of packaging materials and film, maintaining precise heat sealing positions which heighten the acceptance rate of finished products.
A vision inspection system is integral to the packaging machine, identifying and eliminating any defects in the film material such as missing pieces, notches, or damage, thereby ensuring the highest standards of product quality.

KFM-260L-DZ

High Speed Oral Dissolving Film Packaging Machine
