Automatic Oral Thin Film Making Machine, OZM-160

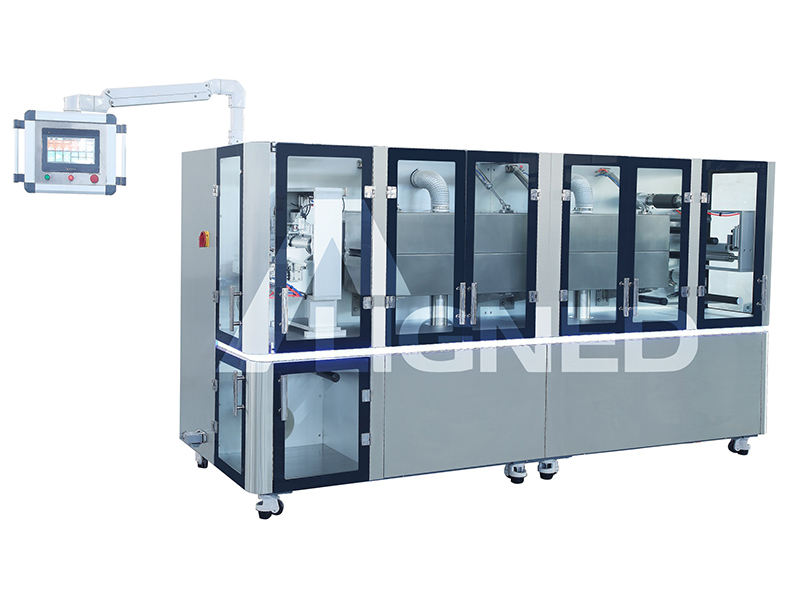

OZM-160 automatic oral thin film making machine is special equipment that makes thin films by evenly spreading liquid materials on the bottom film. It can be configured with functions including web guiding, lamination and slitting, with an extensive range of applications in medicine, cosmetics, health products and food industries.
ALIGNED MACHINERY will offer professional technical support and after-sales service for this oral thin film making machine. Our technical staff will assist customers in commissioning, technical guidance and staff training.
- Suitable for laminating of paper, film, and metallic film coating; the entire oral thin film machine uses frequency converter stepless speed regulation system, and unwinding unit adopts magnetic powder brake tension control;
- The oral thin film machine is constructed with a structure consisting of main body and multiple modules, each module can be independently disassembled and assembled by using positioning pins and fastening screws;
- Automatic working time recording and speed display;
- Drying chamber is located independently, with automatic control of temperature, humidity and concentration, ensuring high efficiency production;
- The lower conveying section and upper operation section are completely isolated from one another using stainless steel plates, thus effectively preventing cross-contamination between the two sections while making cleaning task easier;
- All parts including pressing roller and drying tunnel in contact with the materials are made of stainless steel and non-toxic materials, satisfying the requirements of "GMP" standard; all electrical components and wiring circuits are compliant with "UL" safety standard;
- Emergency stop safety device ensures the safety of operator during the commissioning and mold changing operations;
- The oral thin film making machine carries out a smooth production process covering unwinding, coating, drying and rewinding;
- The drying section can be customized in length to meet actual production needs;
| Item | Parameters |
| Web width | 140mm |
| Roller surface width | 180mm |
| Machine speed | 0.1-1.5m/min (depending on actual material and status) |
| Unwinding diameter | ≤Ø200mm |
| Rewinding diameter | ≤Ø200mm |
| Heating and drying method | Built-in hot air drying, centrifugal fan hot air exhaust |
| Temperature control | Room temperature-100℃ ±3℃ |
| Edge thickness | ±3.0mm |
| Total power | 18kW |
| Dimensions | 3470*1280*2150mm |
| Voltage | 380V |
-
-
Film Making Section

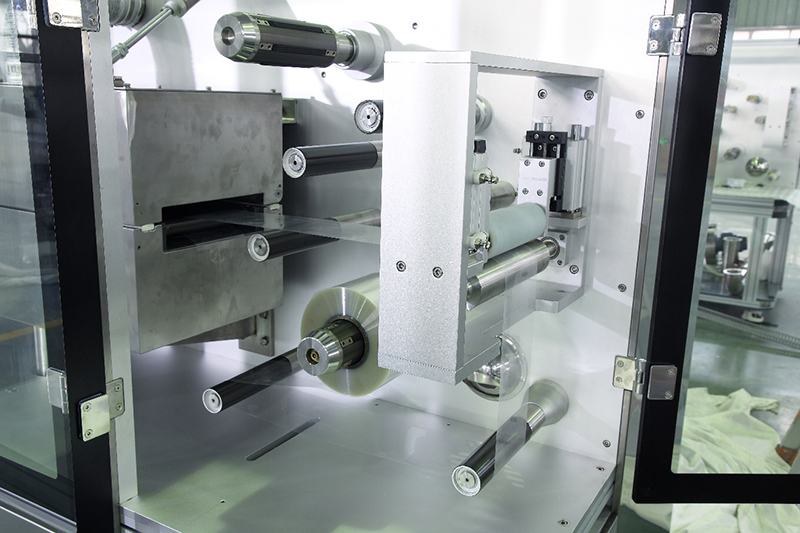

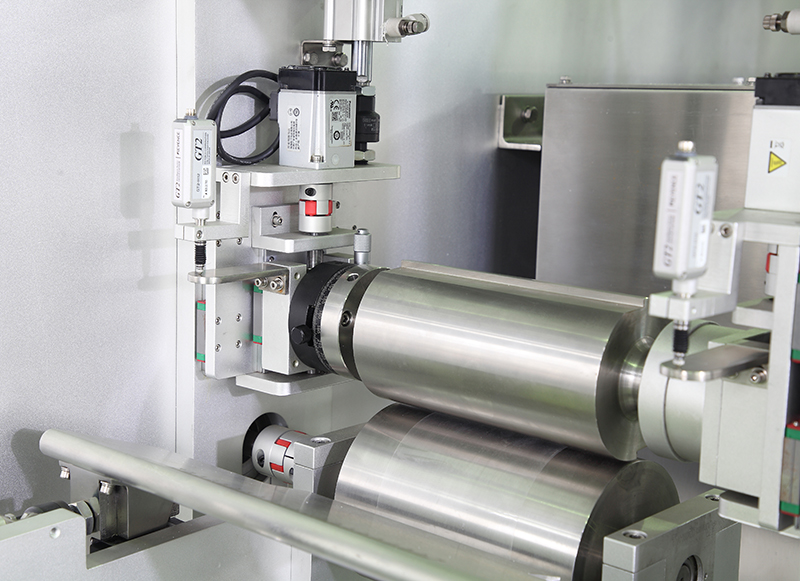

- Independent film making unit, which can realize 3-axis direction adjustment;
- The main roll is controlled by a servo motor to adjust the speed of the machine;
-
-
Unwinding Section

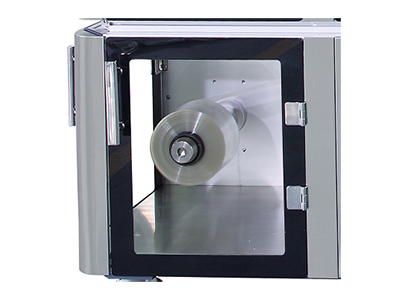

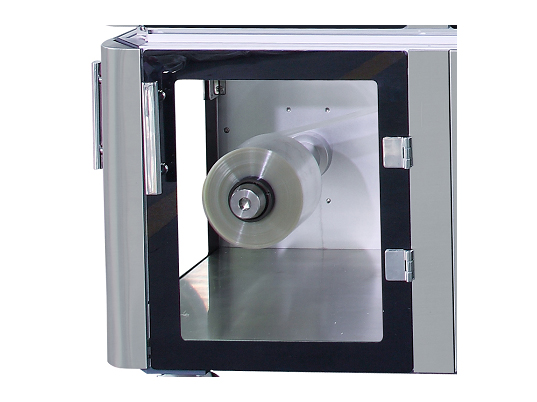

- The unwinding unit adopts the air expanding shaft;
- Unwinding tension is adjusted by magnetic powder clutch;
- Alarm for film shortage;
-
-
Drying Section

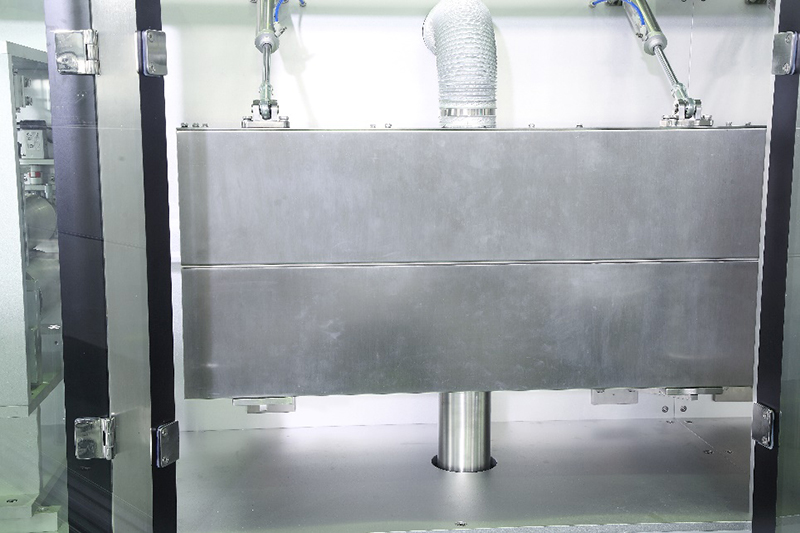

- The drying oven has a built-in hot air high-efficiency filter that eliminates the need for the cleaning of internal pipeline, and pressure difference protection is available inside the oven to facilitate regular replacement of the high-efficiency filter;
- Temperature and humidity control inside the oven;
- The drying oven is constructed with full stainless steel structure, and the opening and closing of the oven are controlled by the cylinder;
-
-
Rewinding Section
- The rewinding unit adopts servo motor to control the winding speed;
- A speedometer is equipped to monitor the film conveying speed in real time;
