KFM-230

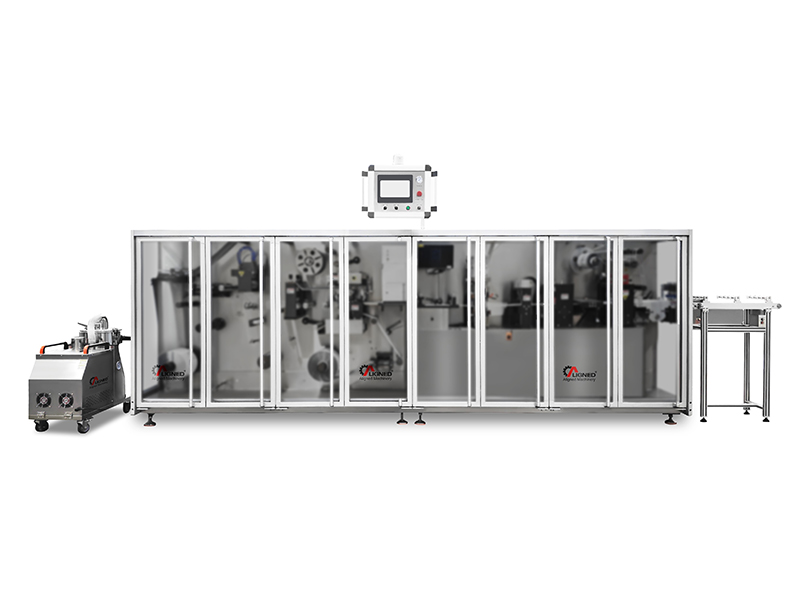

Automatic Oral Thin Film Packaging Machine

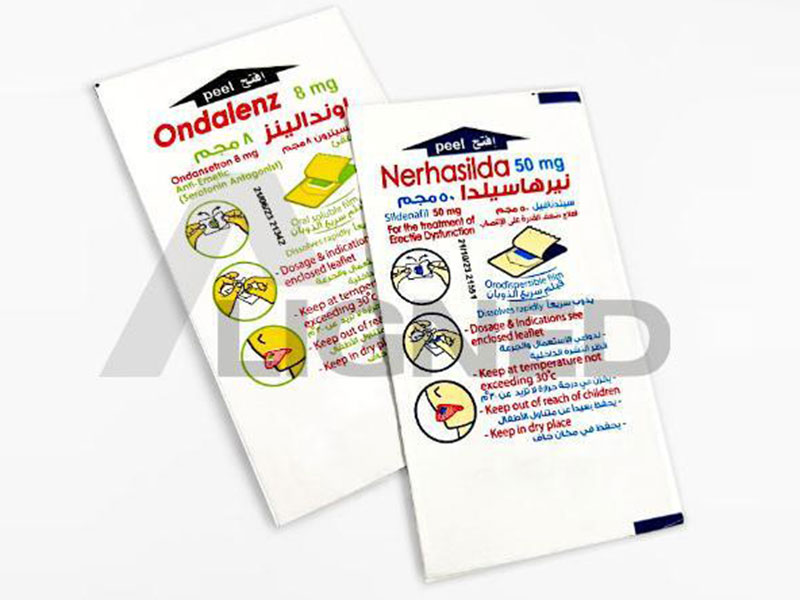

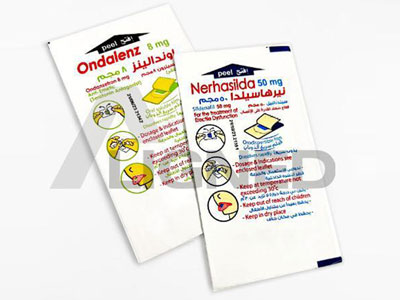

The machine is ideal for packing film strips into pouch, such as oral dissolving films, mint strips, adhesive patch, etc,, having advantages of safe take-away medicine, easy to apply, handle and store,dampness proof, perfect sealing design, strong shading, flexible bag design in shape,size and color.

Request a Quote
Automatic Oral Thin Film Packaging Machine Introduction All Videos
Technical Specifications
Max. cutting speed (standard 45×70×0.1mm) Alu/Alu 5-40times/min
Packaging film width 200-260 mm
Film web width 100-140 mm
Heating power (for heat sealing) 1.5KW
Power supply Three-phase five-wire 380V 50/60HZ 5.8KW
Motor power 1.5KW
Air pump flow volume ≥0.40m3/min
Packaging material Heat-sealing composite film thickness (general) 0.03-0.05mm
Machine dimension (L×W×H) 3500X1150X1900mm
Packaging dimension (L×W×H) 3680X1143X2170mm
Machine weight 2400Kg
Performance & Features
  • This machine uses split module construction.
    During transport and cleaning, the module can be removed separately for easy operation.
  • The main motor using frequency control, according to the length of the trip and the size of the product to set the corresponding number of blanking.
  • Adopts manipulator holding the traction mechanism, smooth operation, accurate synchronization, in the range of any adjustable, that is strip size could be designed in the range arbitrarily.
  • All parts in contact with the material are made of stainless steel and non-toxic materials and meet "GMP" requirements.

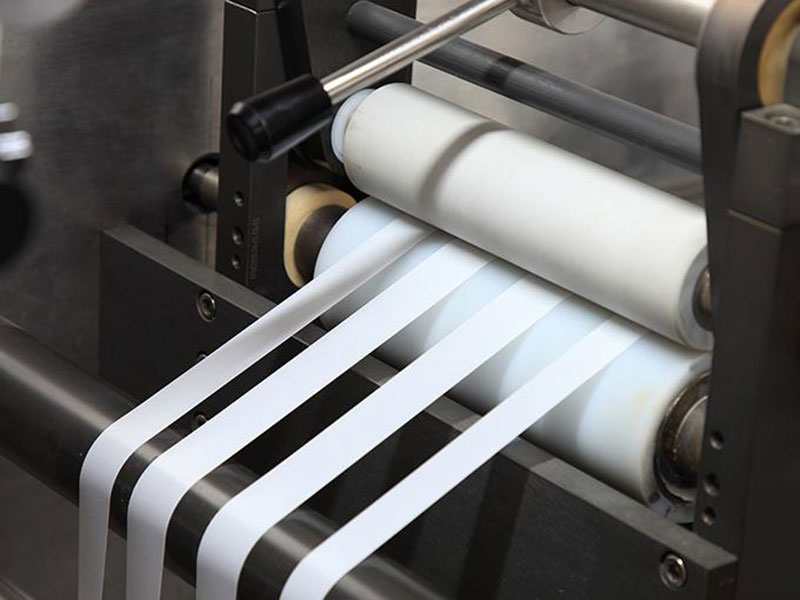

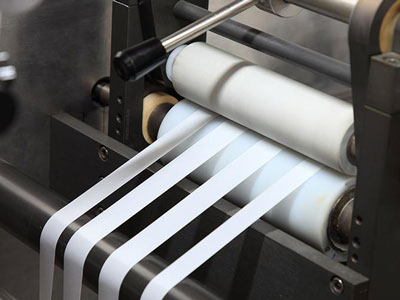

  • Slitting and crosscutting integrated, the material can be precisely divided into a single sheet-like products, and then use the sucker to accurately locate and move the material to the packaging film, laminated, heat sealing, punching, and then output, whole process achieves the integration of product line packaging.
Applicable Packaging Materials
  • Roll packaging materials: PET/Alu/PE composite film (changeable)
  • Thickness: 0.02-0.05mm
  • Inner diameter of roll: 70-76mm
  • Outer diameter of roll: 250mm
