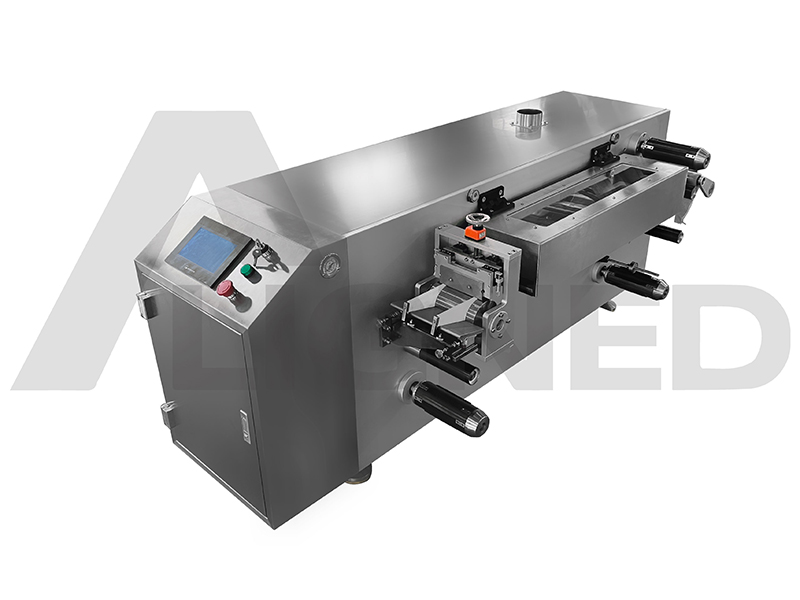

Oral Dissolving Film Making Machine (Lab Type)
Request a Quote

OZM-120

Oral Dissolving Film Making Machine (Lab Type)

The lab type oral dissolving film making machine is special equipment that evenly spreads the liquid material on the bottom film to make a thinner film material. It can be equipped with functions such as lamination and slitting.

  • Oral Dissolving Film Making Machine (Lab Type), OZM-120
  • Oral Dissolving Film Making Machine (Lab Type), OZM-120
  • Oral Dissolving Film Making Machine (Lab Type), OZM-120

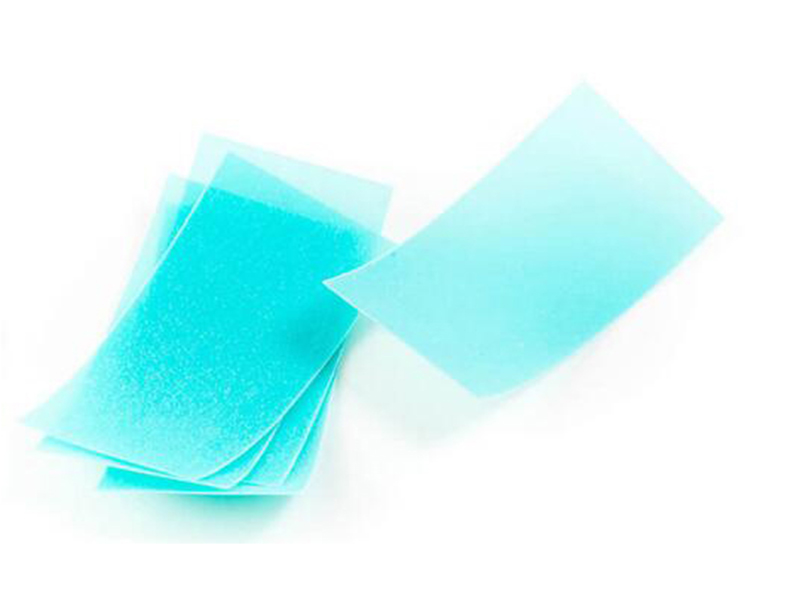

The oral film making machine can be used in pharmaceutical, cosmetic or food industry product manufacturing. If you want to produce patches, oral soluble film strips, mucosal adhesives, masks or any other coatings, our film making machines always work reliably to achieve high precision coatings. Even complex products whose residual solvent levels must meet strict limits can be manufactured using our oral film making machine.

This machine adopts the frequency converter for speed regulation, which is integrated with automatic control of main machine, electricity, compressed air. It meets GMP standard and UL safety standard. PLC control system is used for making and drying oral films, allowing for easy and accurate control.

Oral Dissolving Film Making Machine Introduction All Videos
Oral Dissolving Film Making Machine (Lab Type)
Technical Specifications
Effective production width 120mm
Roll width 140mm
Mechanical speed 0.1-1.5m/min (Depending on actual material and status)
Unwinding diameter ≤⌀150mm
Rewinding diameter ≤⌀150mm
Heating drying method Plate heating, centrifugal fan for hot air exhaust
Temperature control Room temperature: -100℃±3℃
Reel edge ±3.0mm
Total power 5kW
Dimensions 1900*800*800mm
Weight 300kg
Voltage 220V
Performance & Features
  • The oral dissolving film making machine is suitable for the composite production of paper and film coatings. The power system of the whole machine adopts servo drive speed regulation system. Unwinding adopts magnetic powder brake tension control.
  • The pharmaceutical equipment has automatic working length record and speed display.
  • The drying oven adopts the heating method at the bottom of the flat plate, and the temperature is controlled by PID, and the control accuracy can reach ±3℃.
  • The rear conveying part and the front operation area of the equipment are completely sealed and isolated by stainless steel plates, which avoids cross-contamination between the two areas during running. In addition, it's convenient to clean.
  • All parts in contact with the material, including pressing rollers and drying tunnels, are made of stainless steel and non-toxic materials, in line with the requirements and specifications of "GMP". All electrical components, wiring and operating schemes comply with "UL" safety standards.
  • The emergency stop safety device of the equipment improves the safety of operators during debugging and mold changing.
  • It has a one-stop assembly line of unwinding, coating, drying and winding, with smooth process and intuitive production process.
