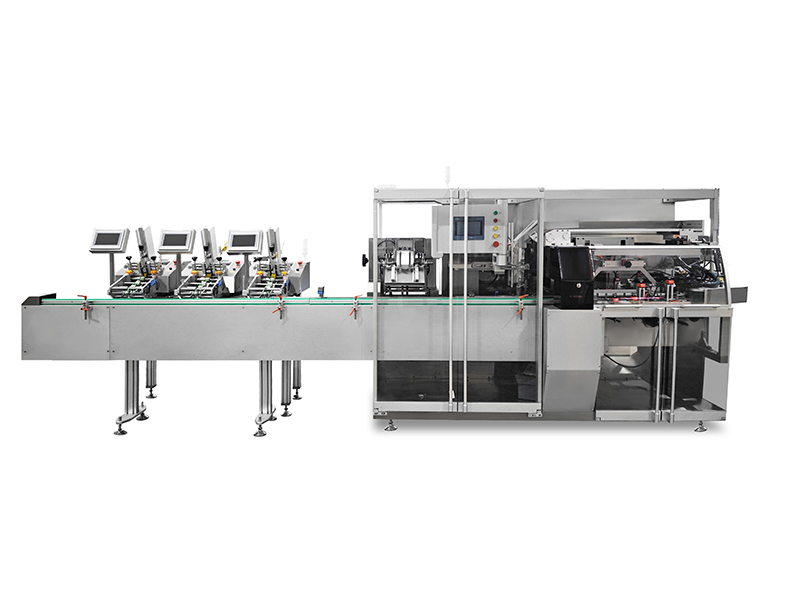

Automatic Sachet Cartoning Machine
Automatic Sachet Cartoning Machine Automatic Sachet Cartoning Machine

KXH-130

Automatic Sachet Cartoning Machine

The automatic sachet cartoning machine integrates electrical and pneumatic functions for efficient carton forming, folding, and sealing. It has been designed to meet the diverse packaging needs of sachets, pouches, bottles, and tubes in a variety of industries, including healthcare, chemical, and other sectors. It offers flexible options based on the specific product and client requirements.

Automatic Sachet Cartoning Machine
Automatic Sachet Cartoning Machine
Request a Quote
Automatic Sachet Cartoning Machine Introduction All Videos
Automatic Sachet Cartoning Machine
Technical Specifications
Cartoning Speed 80-120 boxes/min
Box Quality Requirement 250-350g/m² [ Base on carton size ]
Dimension Range (L×W×H) (70-180)×(35-80)×(15-50)mm
Leaflet Quality Requirement 60-70g/m²
Unfolded Leaflet Size (L×W) (80-250)×(90-170)mm
Fold Range (L×W) 1-4 fold
Compressed Air Working Pressure ≥0.6MPa
Air Consumption 120-160 L/min
Power Supply 220V 50HZ
Main Motor Power 1.1kW
Machine Dimension (L×W×H) Approxi. 3100×1100×1550mm
Machine Weight Approxi. 1400kg
Features
  • Specifically engineered for efficient small sachet packing.
  • Customizable packing options—5, 10, 30, or other custom quantities per carton.
  • Easily switch cartons without the need for additional tools.
  • Automatic code printing and sealing on both ends of the carton.
  • Independent PLC with a user-friendly HMI touchscreen; electrical components primarily from Siemens and SMC.
  • All moving parts are securely enclosed, featuring an automatic shutdown mechanism.
  • It has a product detection sensor that ensures that only cartons with products are packed.
  • Designed with a compact and efficient structure, fully compliant with GMP standards.
  • Equipped with high-dynamic servo drive for versatile applications.
  • Clear layout and simple operation.
  • Offers a gluing option for secure carton sealing.
