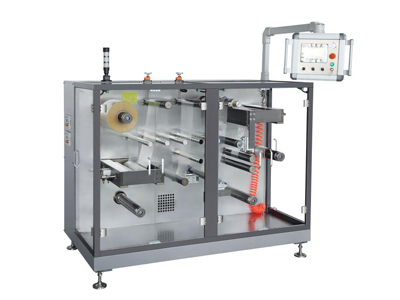

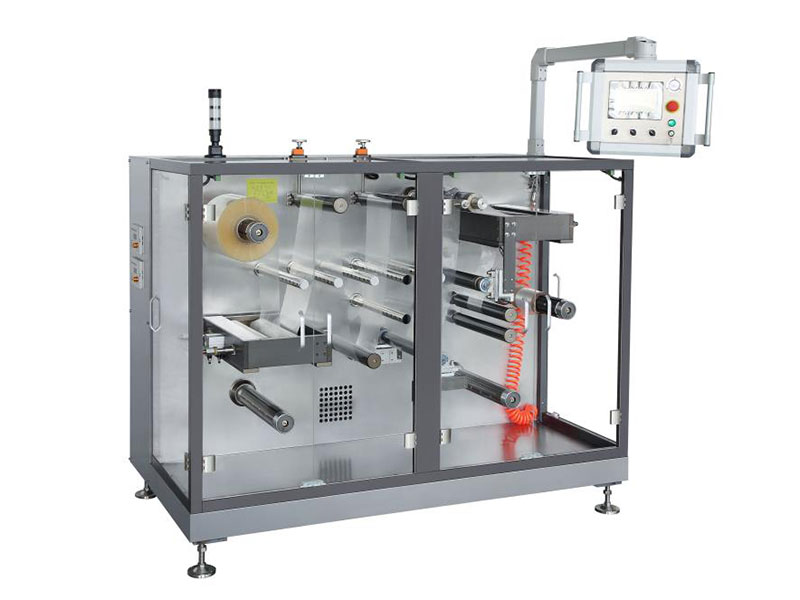

Automatic Slitting and Drying Machine (for Oral Films)
Automatic Slitting and Drying Machine (for Oral Films) Automatic Slitting and Drying Machine (for Oral Films) Automatic Slitting and Drying Machine (for Oral Films)

This product has been discontinued and removed from our shelves.

Automatic Slitting and Drying Machine (for Oral Films)

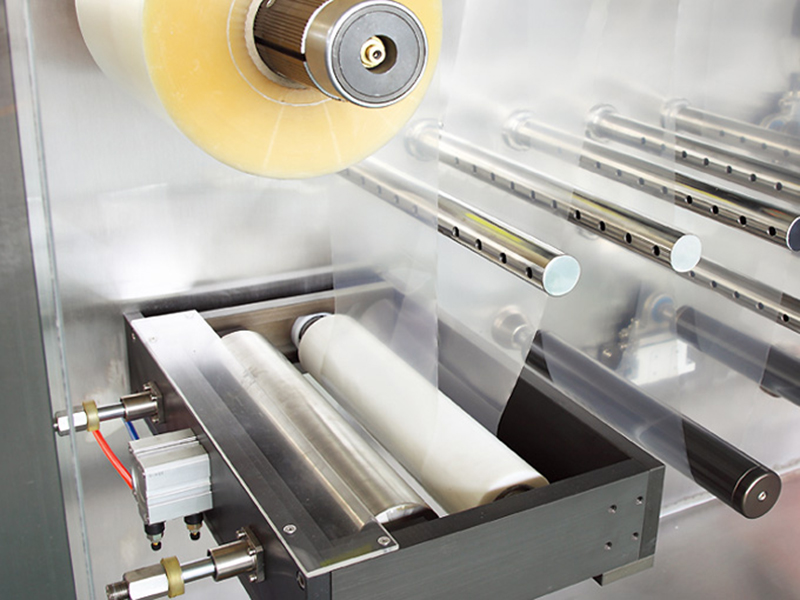

The Oral film slitting machine used for an intermediate process equipment, works on film peeling from mylar carrier, film drying to keep uniform, slitting process and rewinding process, that ensures its proper adaption to next packing process.

Automatic Slitting and Drying Machine Introduction All Videos
Technical Specifications
Production speed Standard 0.02m-10m/min
Slitting film width 110-190 mm (Maximum 380mm)
Film web width ≤380 mm
Motor power 0.8KW/220V
Power supply Single phase 220V 50/60HZ 2KW
Air filter efficiency 99.95%
Air pump flow volume ≥0.40m3/min
Packaging material Slitting composite film thickness (general) 0.12mm
Machine dimension (L×W×H) 1930×1400×1950mm
Packaging dimension (L×W×H) 2200×1600×2250mm
Machine weight 1200Kg
Performance & Features
  • The Oral film slitting machine used for an intermediate process equipment, works on film peeling from mylar carrier, film drying to keep uniform, slitting process and rewinding process, that ensures its proper adaption to next packing process.
  • In the ODF film production process, after the film is completed, it is affected by the production environment or other uncontrollable factors. We need to adjust and cut the film that has been produced, usually in terms of cutting size, adjusting humidity, lubricity and other conditions, so that the film can reach the stage of packaging, and make adjustments for the next step of packaging. Our equipment can be used to produce different types of film products.This equipment is an indispensable process in the film production process, ensuring the maximum use efficiency of the film.
  • The Oral film slitting machine slitting funtion can equipp on the making machine. One Oral film slitting machine slitting funtion can support three units packing machine.
  • The Oral film slitting machine new designed laser printing function, patterns can be printed on the diaphragm according to customer needs.
