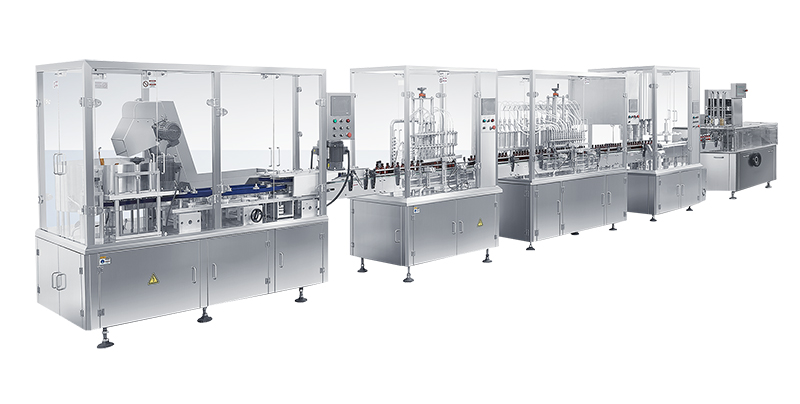

Automatic Liquid Filling, Capping and Labeling Line

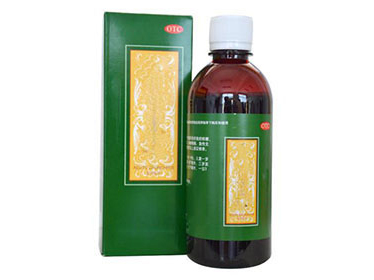

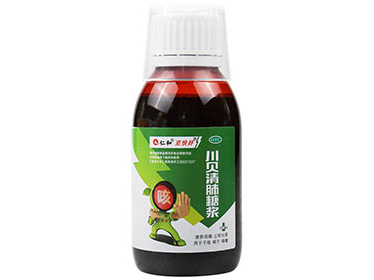

Automatic Liquid Filling, Capping and Labeling Line (for syrup, oral liquid, tincture)

The automatic liquid filling and capping machine is designed for the pharmaceutical, food, and health supplement industries, capable of handling syrups, oral liquids, tinctures, lotions, and other liquid products. Fully compliant with the latest GMP standards, the line automates processes such as bottle unscrambling, air cleaning, filling, capping, aluminum foil sealing, labeling, and cartoning.

With its compact design, high production efficiency, and stable operation, this line offers a practical and cost-effective solution for liquid bottle filling needs.

Automatic Liquid Filling, Capping and Labeling Line Introduction All Videos

Technical Specifications

Filling Range	10-30ml, 30-60ml, 50-120ml, 100-250ml, 250-500ml
Applicable Bottle Types	Round, flat, and irregular-shaped bottles
Filling Heads	4 heads, 6 heads, 8 heads, 12 heads, 16 heads (based on production capacity)
Capping Heads	1 head, 2 heads, 4 heads, 6 heads, 8 heads (based on production capacity)
Filling Accuracy	≤ ±0.5%
Capping Pass Rate (screw or snap capping)	≥99.9%
Production Capacity	40-50 bottles/min, 60-80 bottles/min, 100-120 bottles/min, 160-200 bottles/min, 200-250 bottles/min
Power Supply	220/380V 50Hz
Total Power	≤5-20kW
Compressed Air	0.4-0.6MPa, 25-35m³/h

Features

Entire line controlled by imported PLC with variable frequency drive, enabling full automation and user-friendly human-machine interface operation.
Features automated front and rear machine protection and supports remote equipment management and service, achieving smart and information-driven operations.
Designed to meet GMP standards, ensuring easy cleaning, sterilization, and maintenance with high safety standards. Optional online CIP/SIP system available.
Filling volume is adjusted through the user interface, regardless of the filling principle, offering convenience, high precision, no foaming, and reliable performance.
Capping system ensures safety with adjustable torque for secure and dependable sealing.
The filling and capping processes can be integrated into a single machine or operated as standalone units.
Suitable for bottles of different specifications, with simple and quick adjustments completed in minimal time.
Ensures reliable operation with minimal manual intervention, achieving full automation.
