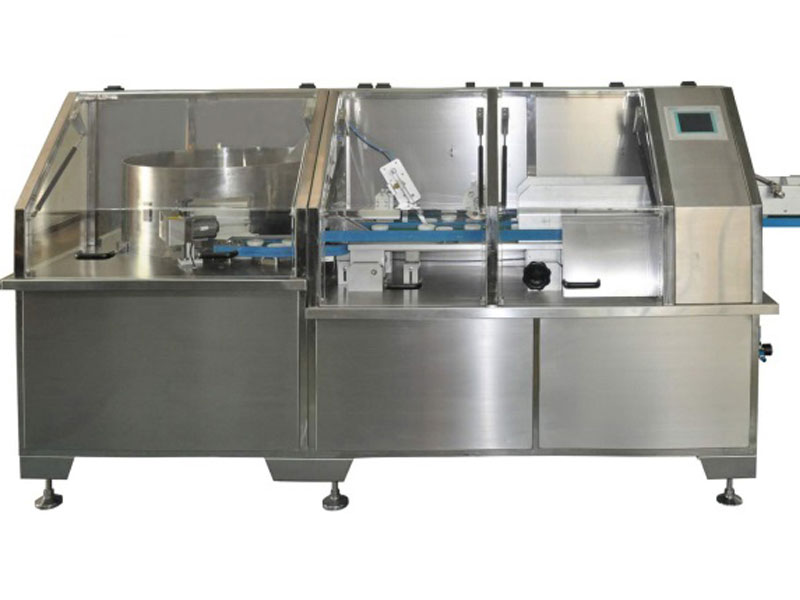

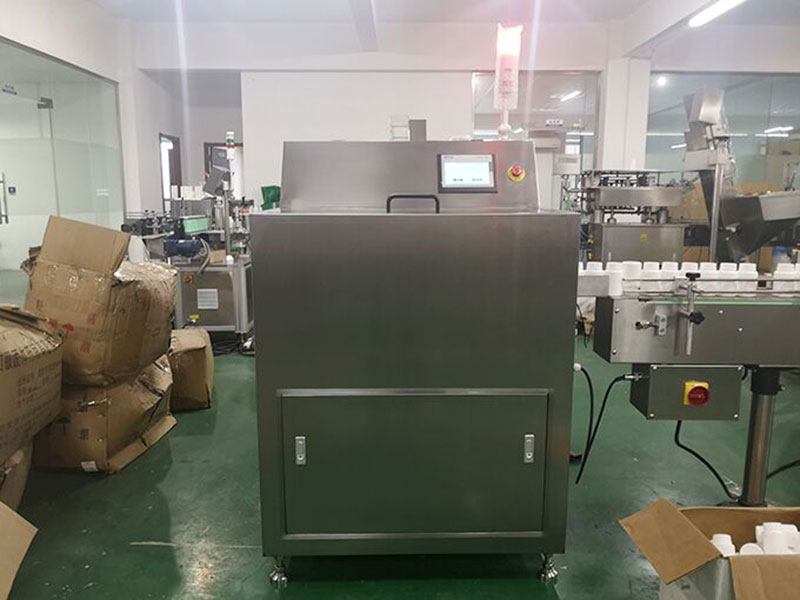

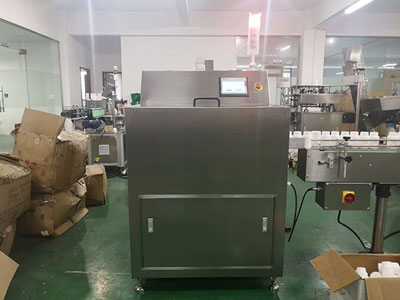

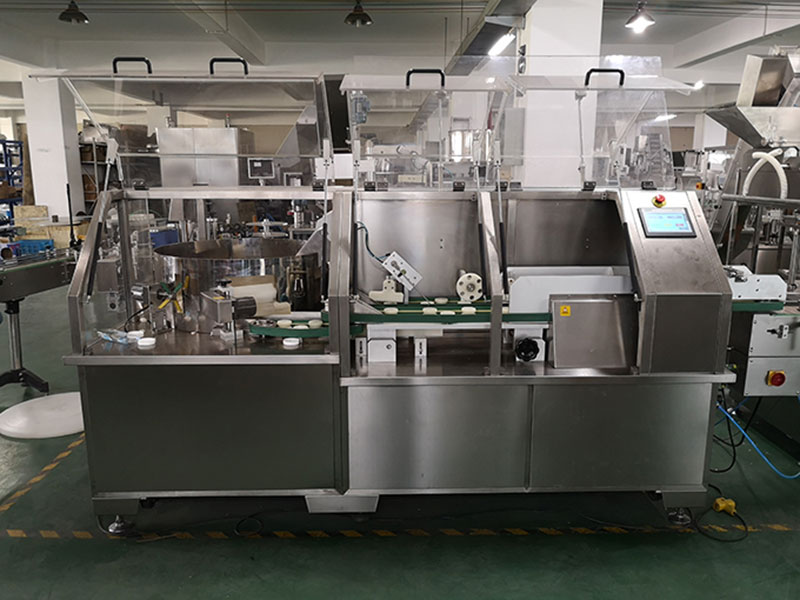

Bottle Unscrambler, GLP Series
GLP series high speed bottle unscrambler is an effective bottle unscrambling machine used in plastic bottle filling line. With the capacity of high speed bottle feeding, this bottle unscrambler is suitable for various high speed production lines and packaging lines. It is also capable of loading bottles onto two bottle filling lines simultaneously through two separate conveyors.
The bottle unscrambling machine allows changing the bottles of different sizes only by changing the loading turntable and adjusting the bottle feeding lane.
The bottle unscramble is equipped with a container that can store over 3,000 plastic bottles of Φ40×75 60ml. The lifting system is available to supply the container with bottles according to the quantity of bottles inside the container. And the photoelectric sensor detects the bottle storage to enable the lifting system to be automatically started or stopped per specified amount.
| Model | |
| Output | 80-200 bottle/min |
| Turntable diameter | Φ600-Φ800 mm |
| Vessel diameter | Φ25-Φ75mm (configurable with turntables of different specifications) |
| Vessel height | 30-120mm |
| Power supply | 3P 380V 50HZ |
| Total power | 2KW |
| Dimension (L*W*H) (mm) | 3000×1300×1350 |
