Tube Filling and Sealing Machine
Tube Filling and Sealing Machine Tube Filling and Sealing Machine Tube Filling and Sealing Machine
Request a Quote

Tube Filling and Sealing Machine

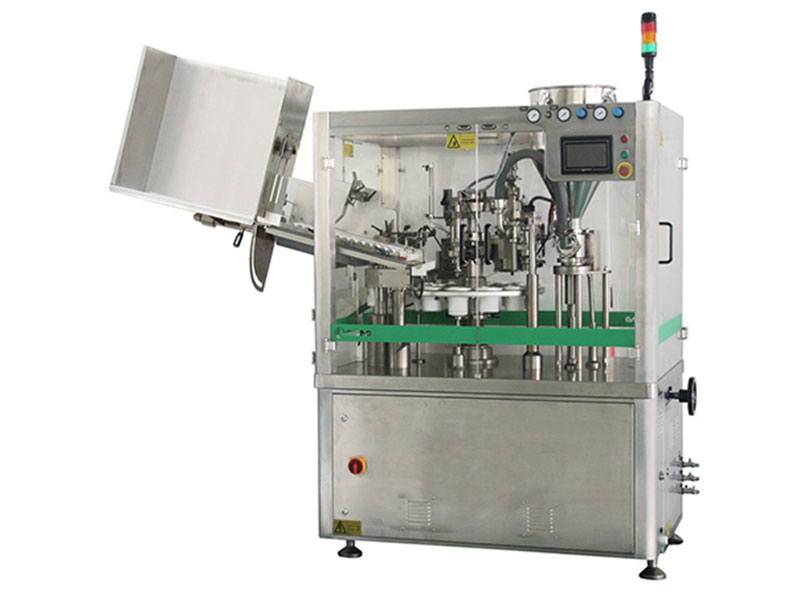

Automatic tube filling and sealing machine is used for filling of polyethylene and laminated tubes with gels, creams or other fluids, sealing them with hot air, stamping date and / or batch No. and cutting excess plastic on the tube ending, which arises during the tube sealing. It has found wide applications in the fields pharmaceutical, foodstuff, cosmetics, daily chemical, etc.

  • Vacuum Emulsifying Mixer
  • Vacuum Emulsifying Mixer
  • Vacuum Emulsifying Mixer
Vacuum Emulsifying Mixer Introduction All Videos
Vacuum Emulsifying Mixer
Technical Specifications
Filling Volume 5-250ml(tube)
Filling Accuracy ≤±1%
Capacity 1800-4800(tubes/h Adjustable)
Tube Diameter ф10- 50mm
Tube Length 210mm (Max. Length)
Total Power Three-phase five lines 380V 50/60HZ, 5.8KW
Hopper Volume 40 L
Power 380/220V(Optional)
Compressed Air 6MPa, 1.1m³/min
Equipped Motor 1.1 Kw
Convulsions 0.37Kw
Hot Air 3.0Kw
Total Power 4.47Kw
Dimension 2390×1140×2180mm LxWxH
Weight (Approx) 1000kgs
Features

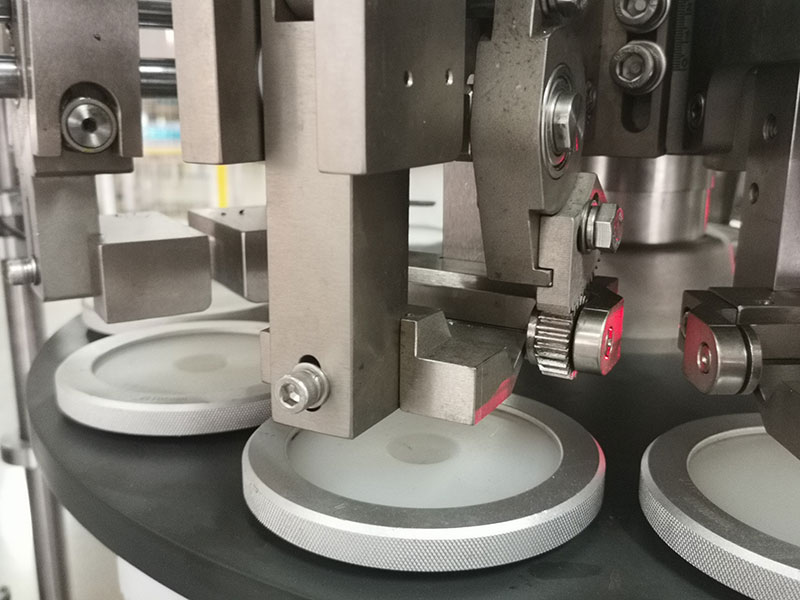

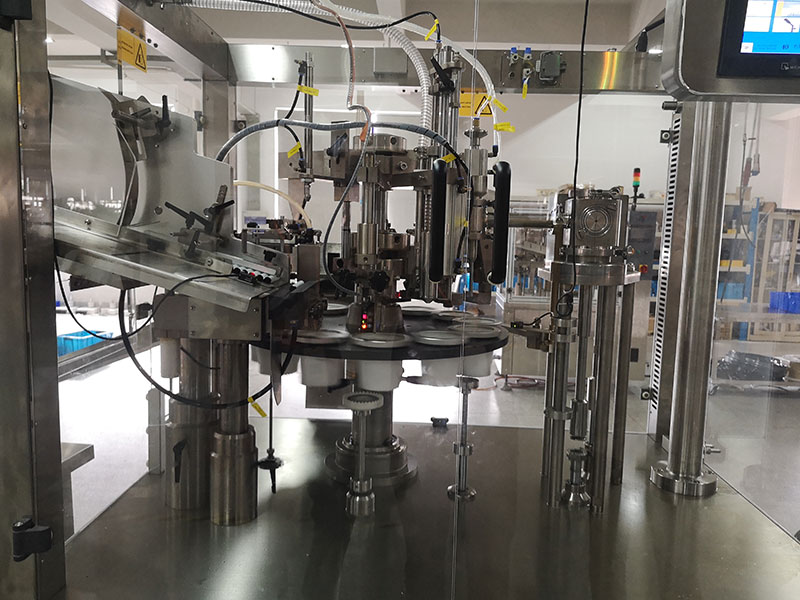

  • All operations are performed in an automatic manner, including tube feeding and washing, marking, filling, hot air sealing, trimming, code printing, and output discharge.
  • Tube washing and feeding are conducted pneumatically, accurate and reliable.
  • All parts in contact with materials are made of 316L stainless steel, clean, sanitary, conforming to GMP standard.
  • With safety device, the machine stops working when the door is opened. Overload protection is provided.
  • The conveying part features enclosed design, avoiding cross contamination.
  • It is easy to watch, operate and maintain. The loading and sealing part features visible design, ensuring easy operation and maintain.
  • The tube filling and sealing machine stops working when counting the number or fixing the quantity.

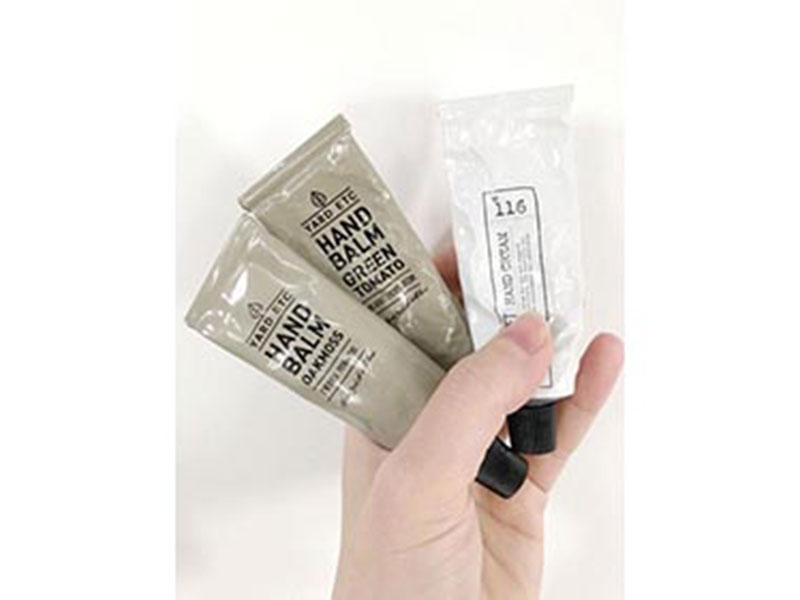

  • The machine is applied to both aluminum and plastic tube.

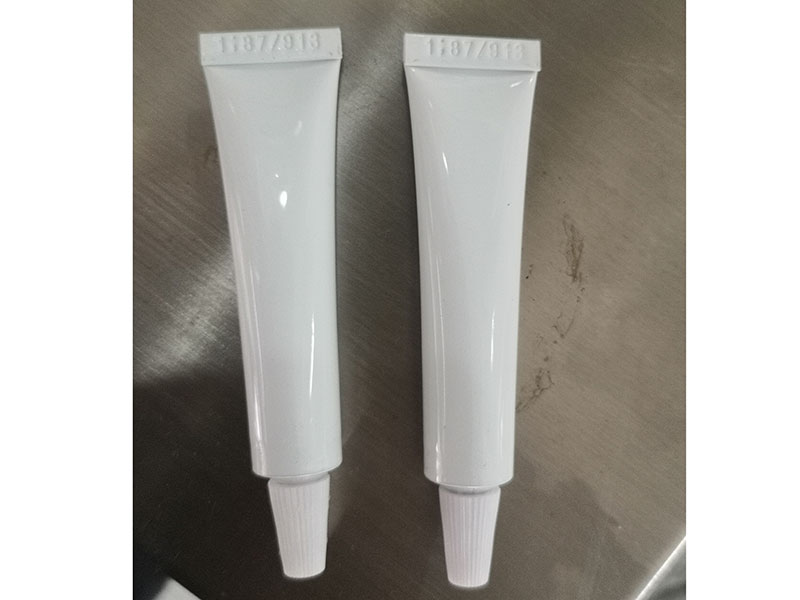

  • The soft tube end can be made into right-angle shape and round shape as per your option.
