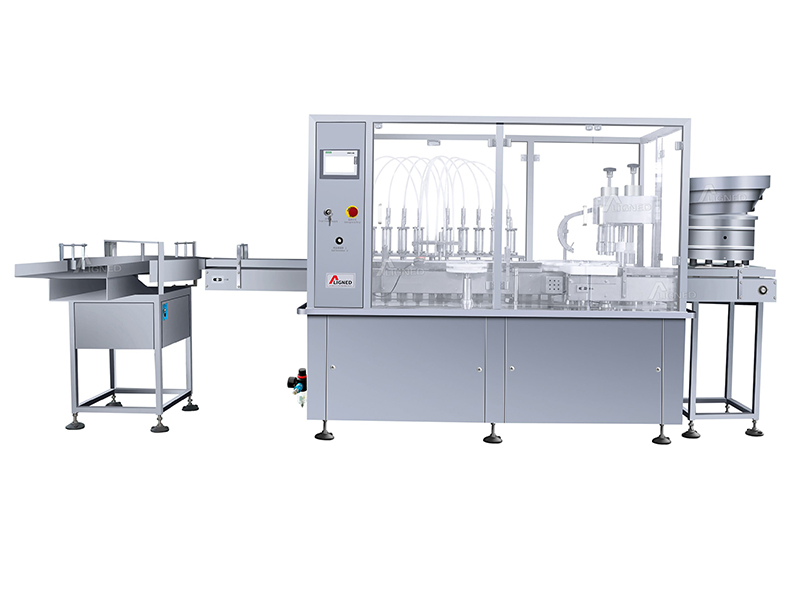

Automatic Liquid Filling and Capping Machine

Automatic Liquid Filling and Capping Machine Introduction All Videos

Technical Specifications

Model	ALFC-4/1	ALFC-8/2	ALFC-10/2	ALFC-12/2
Filling Capacity Options	100-100ml/100-500ml/500-1000ml	100-100ml/100-500ml/500-1000ml	100-100ml/100-500ml/500-1000ml	100-100ml/100-500ml/500-1000ml
Filling Heads	4 heads	8 heads	10 heads	12 heads
Capping Heads	1 head	2 heads	2 heads	2 heads
Filling Speed	30-50bpm (depending on the filling volume)	80-100bpm (depending on the filling volume)	80-100bpm (depending on the filling volume)	80-100bpm (depending on the filling volume)
Filling Accuracy	±1%	±1%	±1%	±1%
Supply Voltage	380V/220V 50Hz	380V/220V 50Hz	380V/220V 50Hz	380V/220V 50Hz
Power	3.0kW	4.0kW	4.0kW	4.0kW
Weight	Approxi. 800 kg	Approxi. 980 kg	Approxi. 980 kg	Approxi. 980 kg
Dimension	2400×1250×1750mm	3200×1350×1750mm	3200×1350×1750mm	3200×1350×1750mm

Features

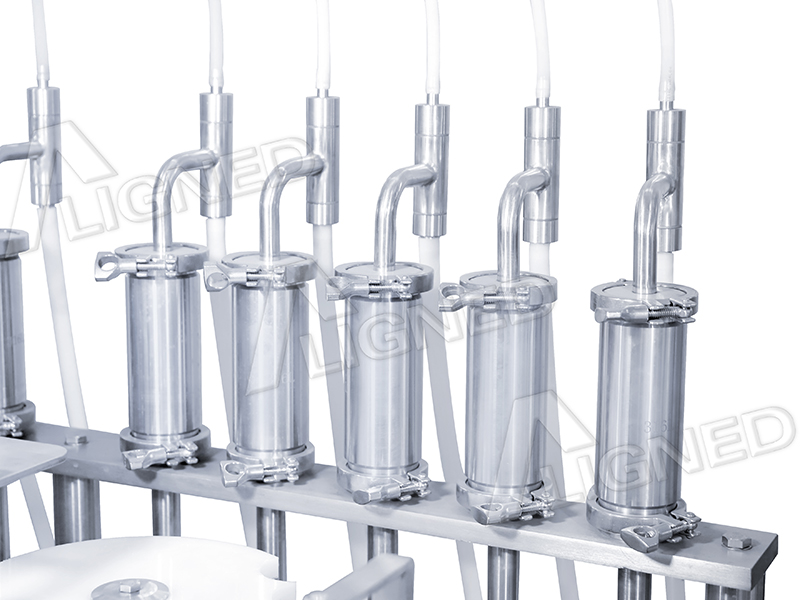

Supports filling volumes from 10ml to 1000ml, catering to both small bottles and large-capacity production. The servo motor control ensures high precision with no dripping, guaranteeing product consistency and minimizing waste.

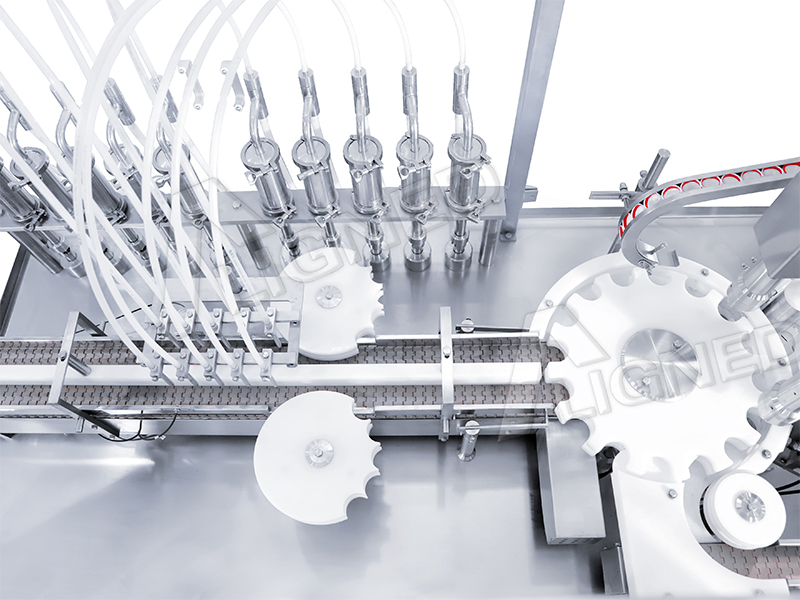

This filling machine can be configurable with 4 to 12 filling heads, offering flexibility to adapt production capacity. The compact design minimizes floor space requirements, making it ideal for facilities with limited space.
It is equipped with an imported plc control system and an intuitive touchscreen interface for easy operation. It also features automatic diagnostics and alarm functions, ensuring high efficiency and long-term stability.

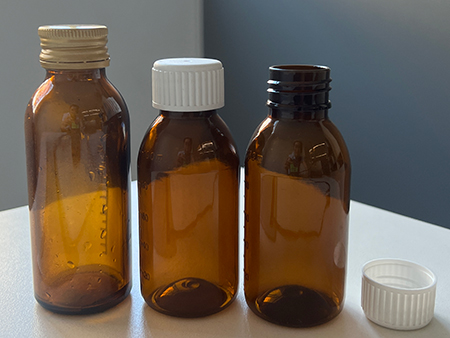

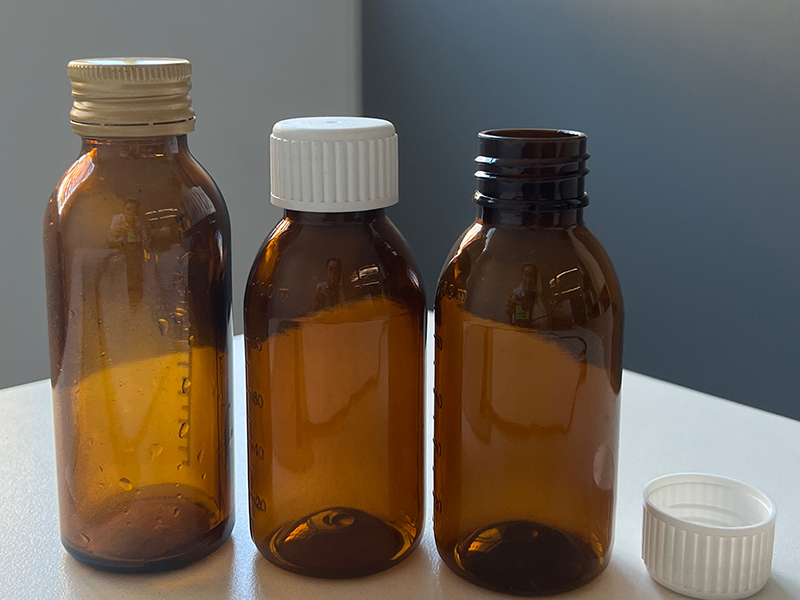

Suitable for round, flat, and irregularly shaped bottles, meeting diverse packaging requirements in pharmaceuticals, food, and health supplements.
Fully adheres to GMP, FDA, and other international regulations. Key components are made from 316L stainless steel, ensuring cleanliness and hygiene in all product-contact areas.

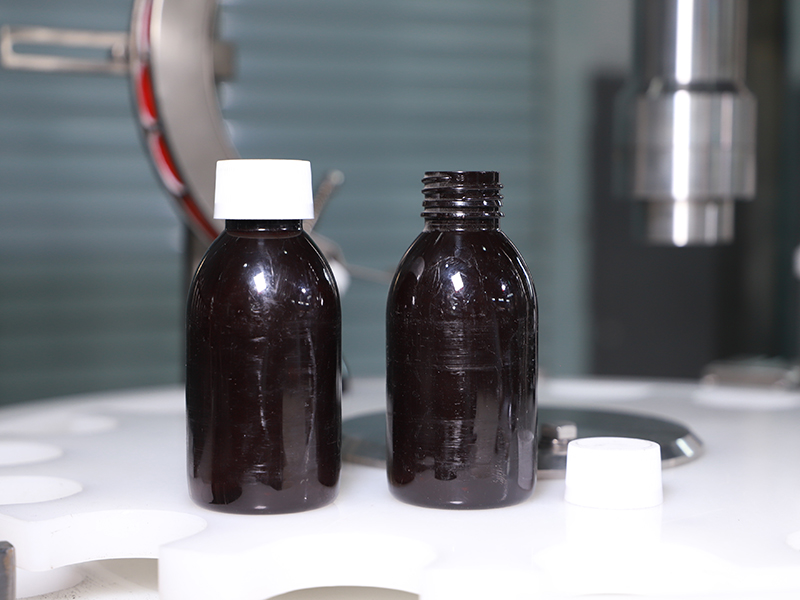

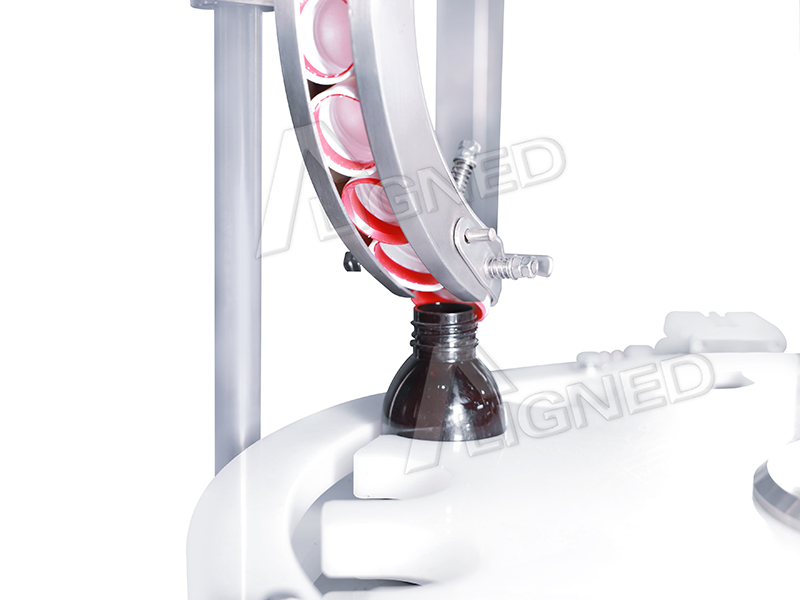

Features automatic bottle detection, positioning, and a “no bottle, no fill” mechanism to reduce manual intervention. The capping system includes adjustable torque for secure, damage-free sealing, further enhancing product quality and safety.
