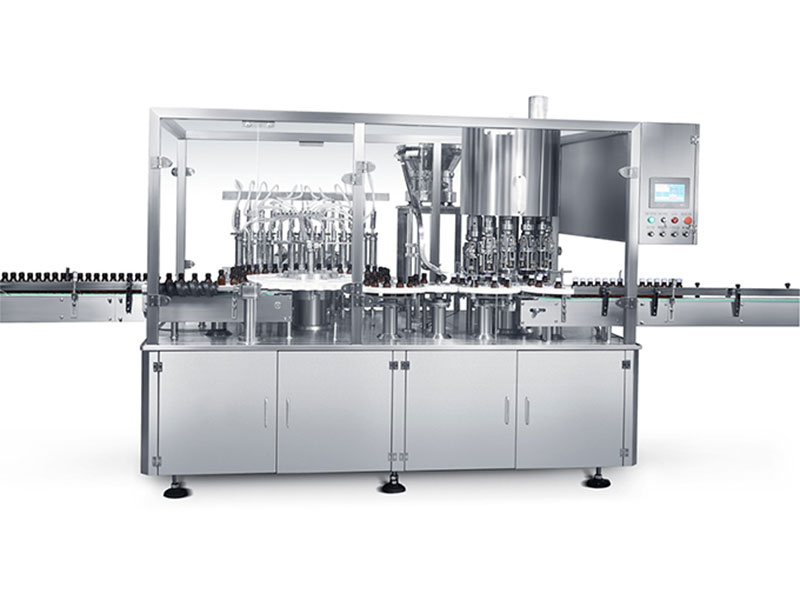

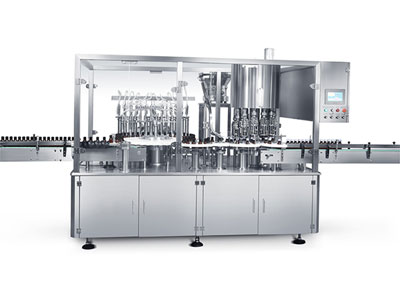

Liquid Filling and Capping Machine, YAMP Series
YAMP series liquid filling and capping machine is particularly designed for packaging of liquid products with different viscosities for pharmaceutical and healthcare applications, such as oral liquids, syrups, supplements, etc.
| Model | ||
| Filling capacity | 20~1000ml | |
| Selectable filling capacity | 20-100ml \50-250ml\100-500ml\200ml-1000ml | |
| Cap types | Pilfer proof caps, screw caps, ROPP caps | |
| Output | 3600~5000bph | 2400~3000bph |
| Filling accuracy | ≤±1％ | |
| Capping accuracy | ≥99％ | |
| Power supply | 220V 50/60Hz | |
| Power | ≤2.2kw | ≤1.2kw |
| Air pressure | 0.4~0.6MPa | |
| Weight | 1000kg | 800kg |
| Dimension | 2200×1200×1600 | 2000×1200×1600 |
Founded in 2004, ALIGNED MACHINERY is a high-tech company specialized in developing, manufacturing and supplying of pharmaceutical machinery and packaging equipment. In addition to manufacturing and offering solid dosage production line including crushing machine, mixing machine, drying machine, capsule filling machine, tablet press, tablet coating machine, blister packaging machine and bottling line, we are also capable of providing complete solutions to solve your application needs.
Since the day of its foundation, ALIGNED MACHINERY has made a firm commitment to serve customers with one-stop source for pharmaceutical equipment and pharmaceutical projects. With wealthy experience of EPCM projects, we have executed a number of projects of solid dosage and liquid dosage manufacturing for various markets.
