In-Line Capper, SGP Series
In-Line Capper, SGP Series In-Line Capper, SGP Series In-Line Capper, SGP Series In-Line Capper, SGP Series In-Line Capper, SGP Series In-Line Capper, SGP Series

This product has been discontinued and removed from our shelves.

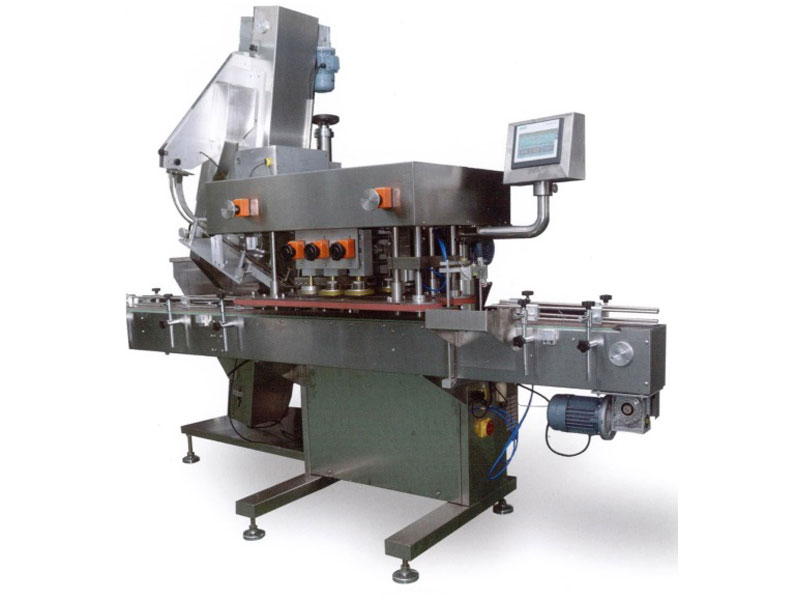

In-Line Capper, SGP Series

Our in-line capper is suitable for placing and tightening caps of various containers such as round bottles, flat bottles and square bottles. This bottle capping machine is widely used in pharmaceutical, nutraceutical, foodstuff, pesticide, chemical and other industries.

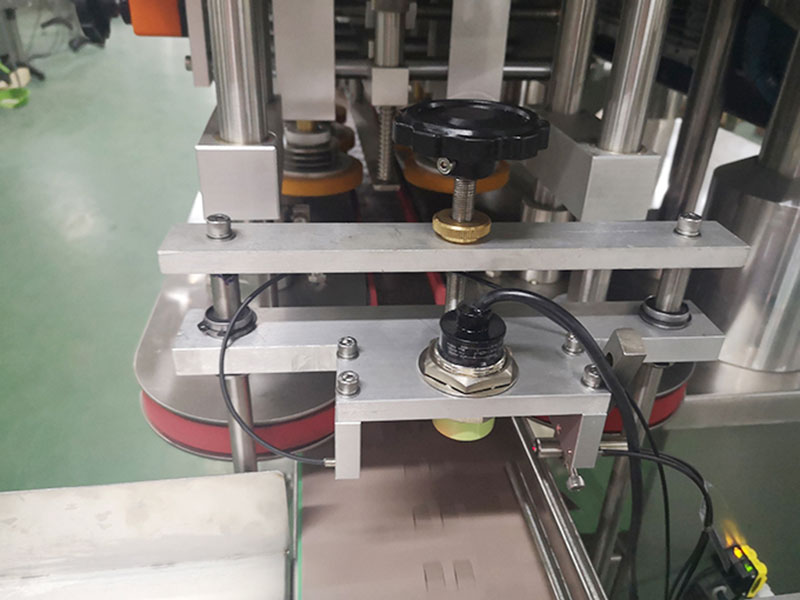

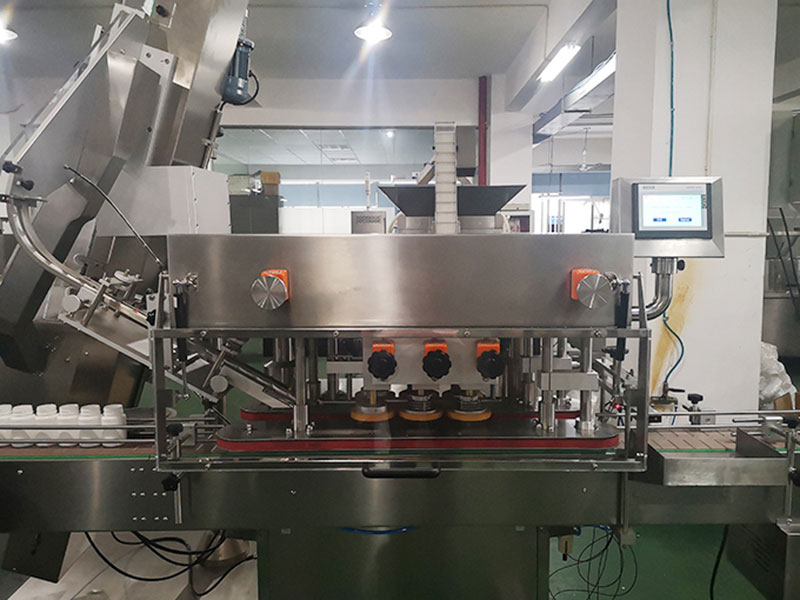

SGP series in-line capper mainly consists of three parts, i.e. cap placing mechanism, main capping structure (bottle feeding and capping mechanism), and conveyor belt. In addition, the cap inspection and rejection system is optional for removal of faulty products (the system isn’t suitable for fragile containers).

Features

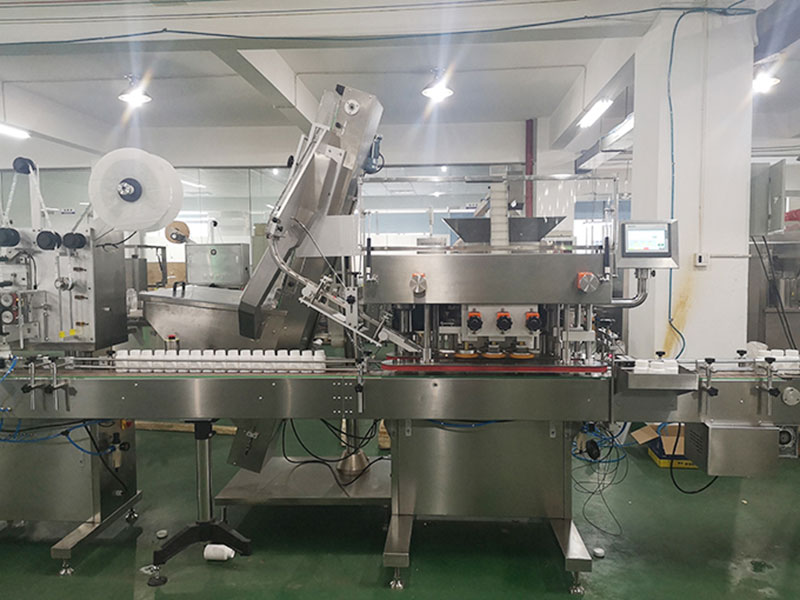

  • This in-line capper can be used as stand alone capping machine or applied together with other equipment to form a complete tablet bottling line;
  • Based on PLC (programmable logic control), the SGP series capping machine is operated through touch screen, while the SG series capping machine is operated by control panel with buttons;

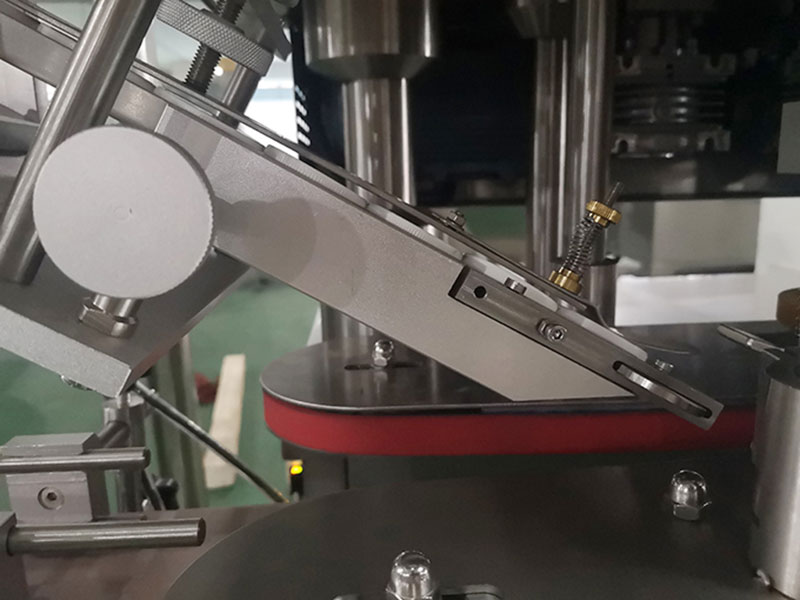

  • The in-line capper will automatically feed caps from bulk hopper through the conveyor belt and deliver them to the main capping structure. Then the placing mechanism will transfer the caps from the chute on to bottles, offering a reliable and convenient operation;
Technical Specifications
Model SGP200
Output 60-120 bottle/min
Applicable cap diameter Φ25-Φ70mm
Applicable container diameter Φ35-Φ140mm
Applicable container height 38-250mm
Total power 1.5kw
Power supply Three-phase AC 50-60HZ
Weight 830kg
Dimension (L*W*H) 1300*850*1400mm
